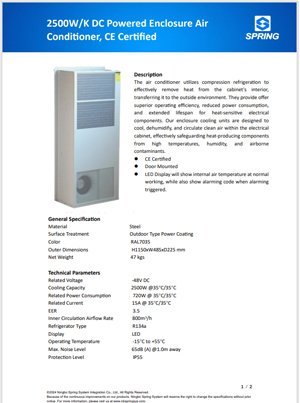

2500W DC Powered Air Conditioner, CE Certified
The air conditioner utilizes compression refrigeration to effectively remove heat from the cabinet’s interior, transferring it to the outside environment. They provide offer superior operating efficiency, reduced power consumption, and extended lifespan for heat-sensitive electrical components. Our enclosure cooling units are designed to cool, dehumidify, and circulate clean air within the electrical cabinet, effectively safeguarding heat-producing components from high temperatures, humidity, and airborne contaminants.
Product Part Number: 711053
- CE Certified
- Door Mounted
- LED Display will show internal air temperature at normal working, while also show alarming code when alarming triggered.
- Technical Data
- Ordering Information
- Resources
| General Specification | |
| Material | Steel |
| Surface Treatment | Outdoor Type Power Coating |
| Color | RAL7035 |
| Outer Dimensions | H1150xW485xD225 mm |
| Net Weight | 47 kgs |
| Technical Parameters | |
| Related Voltage | -48V DC |
| Cooling Capacity | 2500W @35°C/35°C |
| Related Power Consumption | 720W @ 35°C/35°C |
| Related Current | 15A @ 35°C/35°C |
| EER | 3.5 |
| Inner Circulation Airflow Rate | 800m³/h |
| Refrigerator Type | R134a |
| Display | LED |
| Operating Temperature | -15°C to +55°C |
| Max. Noise Level | 65dB (A) @1.0m away |
| Protection Level | IP55 |
| Part No. | Description |
| 711053 | 2500W/K DC Powered Enclosure Air Conditioner, CE Certified |
