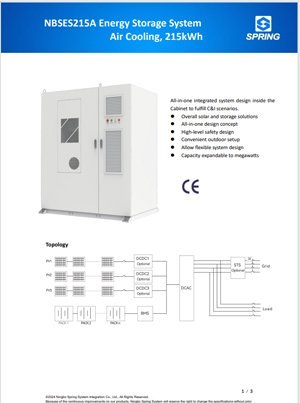

Energy Storage System, Air Cooling, 215kWh
All-in-one integrated system design inside the Cabinet to fulfill C&I scenarios.
- Overall solar and storage solutions
- All-in-one design concept
- High-level safety design
- Convenient outdoor setup
- Allow flexible system design
- Capacity expandable to megawatts
- Technical Data
- Ordering Information
- Resources
| Battery Specifications | |
| Battery Module Type | HV51280F |
| Cell Capacity | 280Ah |
| Battery Voltage Range | 672~864V |
| Nominal Current | 140A (0.5C) |
| System Storage Power | 215kWh |
| System Specifications | |
| Dimensions (W*D*H) | 1850*1200*2250 mm |
| Weight | Around 3330 kgs |
| Air Conditioner Power | 3kW (Cooling Capacity) |
| Operation Temperature | -20~50°C |
| Operation Humidity | 0~95% (non-condensing) |
| Protection Level | IP55 |
| Anti-corrosion Level | C3 |
| Noise Level | ≤75dB |
| Altitude | ≤3000m |
| Cooling System | Fan Cooling |
| Display | Touch Screen (Optional) |
| Firefighting | Aerosol/Heptafluoropropane (FM-200)/Perfluoro |
| EMS Communication | Ethernet |
| Certification | CE/CQC |
| Part No. | Description |
| NBSES215A | Energy Storage System, Air Cooling, 215kWh |
