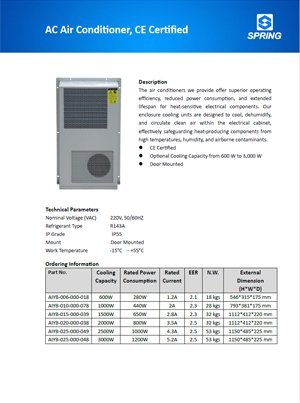

AC Air Conditioner, CE Certified
The air conditioners we provide offer superior operating efficiency, reduced power consumption, and extended lifespan for heat-sensitive electrical components. Our enclosure cooling units are designed to cool, dehumidify, and circulate clean air within the electrical cabinet, effectively safeguarding heat-producing components from high temperatures, humidity, and airborne contaminants.
- CE Certified
- Optional Cooling Capacity from 600 W to 3,000 W
- Door Mounted
- Technical Data
- Ordering Information
- Resources
| Nominal Voltage (VAC) | 220V, 50/60HZ |
| Refrigerant Type | R143A |
| IP Grade | IP55 |
| Mount | Door Mounted |
| Work Temperature | -15°C ～+55°C |
| Part No. | Cooling Capacity | Rated Power Consumption | Rated Current | EER | N.W. | External Dimension (H*W*D) |
| AIYB-006-000-018 | 600W | 280W | 1.2A | 2.1 | 18 kgs | 546*315*175 mm |
| AIYB-010-000-078 | 1000W | 440W | 2A | 2.3 | 28 kgs | 793*381*175 mm |
| AIYB-015-000-039 | 1500W | 650W | 2.8A | 2.3 | 32 kgs | 1112*412*220 mm |
| AIYB-020-000-038 | 2000W | 800W | 3.5A | 2.5 | 32 kgs | 1112*412*220 mm |
| AIYB-025-000-049 | 2500W | 1000W | 4.3A | 2.5 | 53 kgs | 1150*485*225 mm |
| AIYB-025-000-048 | 3000W | 1200W | 5.2A | 2.5 | 53 kgs | 1150*485*225 mm |
