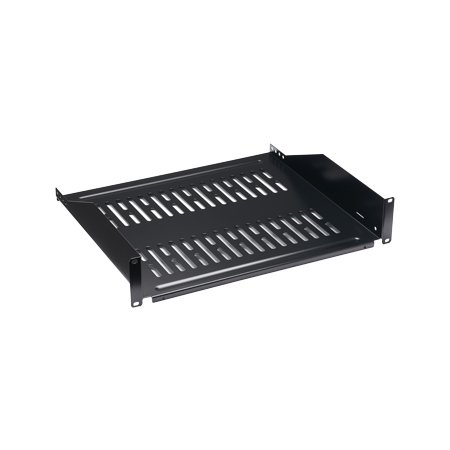

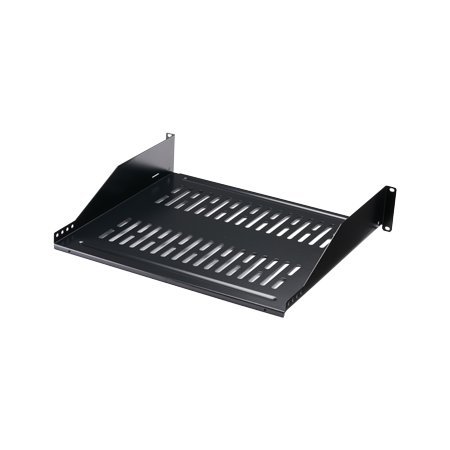

2U Cantilever Rack Shelf
With a 50 lb. weight capacity and three available depths, our 2U cantilever shelf provides support for non-rackmountable equipment in a variety of installation environments, including relay racks, wall cabinets, and full-size network and server cabinets.
- [Application]: Fit with all 19” racks and cabinets to hold IT, network and other equipment.

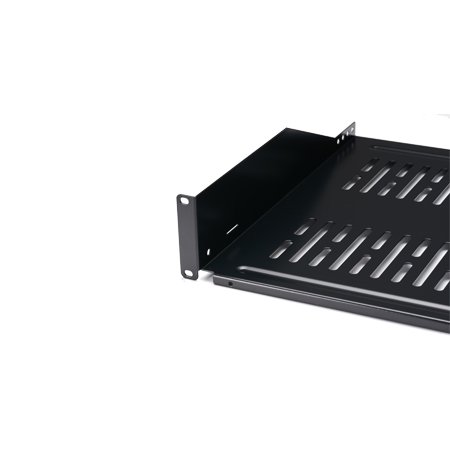

- [Ventilation]: Vented design to provide the airflow necessary to keep equipment running cool.
- [Heavy Duty]: Made from SPCC cold-rolled steel with maximum loading capacity of 50lbs for equipment.

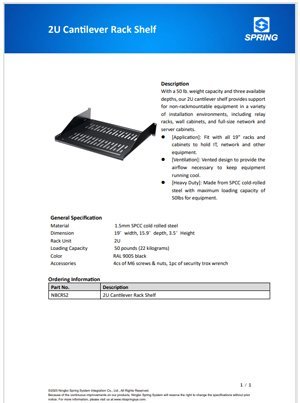

- General Specification
- Ordering Information
- Resource
| Material | 1.5mm SPCC cold rolled steel |
| Dimension | 19” width, 15.9” depth, 3.5” Height |
| Rack Unit | 2U |
| Loading Capacity | 50 pounds (22 kilograms) |
| Color | RAL 9005 black |
| Accessories | 4cs of M6 screws & nuts, 1pc of security trox wrench |
| Part No. | Description |
| NBCRS2 | 2U Cantilever Rack Shelf |
