22U Outdoor Enclosure, Galvanized Steel, 1.5kW Air Conditioner, IP55

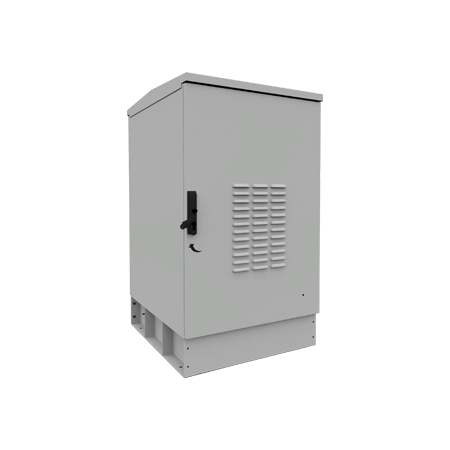

This compact 20U enclosure provides a rugged, weather-resistant housing solution for outdoor telecom and networking equipment. Its thermally efficient design helps maintain a stable internal environment, protecting sensitive electronics from extreme temperatures and condensation.
The cabinet features a dual-wall insulated construction—a heavy-duty galvanized steel outer shell combined with a thick thermal insulation layer—delivering exceptional mechanical protection and passive thermal control. Active airflow is managed by top-mounted fans that work with the natural chimney effect to efficiently expel heat.
Rated IP55, the enclosure ensures reliable performance in harsh outdoor conditions, making it ideal for space-constrained sites including curbside, rooftop, and small-cell deployments.
Product Part Number: 7303110000
- Technical Data
- Ordering Information
- Resources
| Material | Two Layers, 1.5 mm Thickness Galvanized Steel as Outer Layer and 20mm LHPE as Inner Layer | |
| Finish | Pantone 428C Powder Coating | |
| Color | RAL7035 Light Grey | |
| External Dimension | Height | 1150 mm, including Plinth H150 mm |
| Width | 650 mm | |
| Depth | 760 mm | |
| Protection Level | IP55 | |
| Installation | Pad Mount | |
| Access | Front Door | |
| Max. Door Opening | 120° | |
| Rack Mount | 19” | |
| Locking Mechanism | 3 Point Locking | |
| Cable Access | 8 pcs of PG21 Cable Entries at the Bottom | |
| Other Included Parts | Ground Bar | |
| Part No. | Description |
| 7303110000 | 20U Outdoor Enclosure, Galvanized Steel, Fan Cooling, IP55 |
