38U Outdoor Enclosure, Aluminum, 1.5kW Air Conditioner, IP55
The 38U outdoor enclosure, crafted from durable aluminum, provides robust protection against vandalism and harsh environmental conditions. Equipped with a 1.5kW air conditioner, it’s designed to effectively manage the escalating heat load demands at your base station and network edge sites.
Product Part Number: 5238010001
- Equipped with 1.5kW air conditioner, ensuring the adequate climate management inside the enclosure.

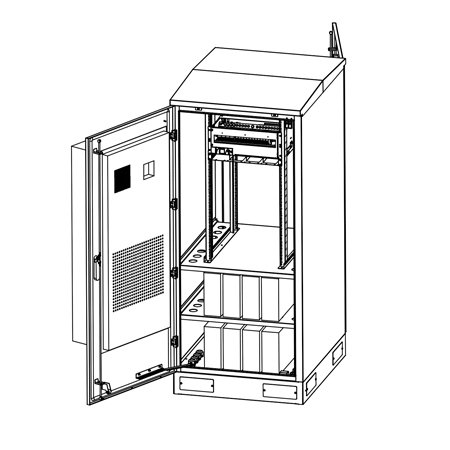

- Front and rear door access for easy installation and maintenance.
- Technical Data
- Ordering Information
- Resources
| Material | Two Layers, 3.2mm Thickness Aluminum as Outer Layer and 10mm Thickness Thermal Insulation Foam as Inner Layer |
| Finish | Pantone 428C Powder Coating finishes |
| Color | RAL7035 Light Grey |
| External Dimension | H2000xW1096xD986mm, including Plinth H120mm |
| Protection Rating | IP55 |
| Installation | Pad Mount |
| Access | Front Door and Rear Door |
| Loading Capacity | 2200lbs. |
| Rack Mount | 19” |
| Locking Mechanism | 3 Point Locking |
| Cable Access | 8pcs of PG29 and 2pcs of PG21 at the Bottom |
| Included Accessories | 1xDocument Holder, 1xGrounding bar, 10xL-rail |
| Part No. | Description |
| 5238010001 | 38U Outdoor Enclosure, Aluminum, 1.5kW Air Conditioner, IP55 |
