22U Outdoor Enclosure, Galvanized Steel, 1.5kW Air Conditioner, IP55

This 22U outdoor enclosure is designed to protect expensive equipment or provide power supply in harsh environments, with waterproof and dustproof features. Cooling of active equipment is achieved by DC rated 1500W Air Conditioner. Various monitoring sensors such as smoke, and access control are installed in the enclosure, allowing personnel to monitor the operation status of the cabinets in real-time.

Product Part Number: 02322600001

Equipped with 1500W air conditioner, ensuring the adequate climate management inside the enclosure.

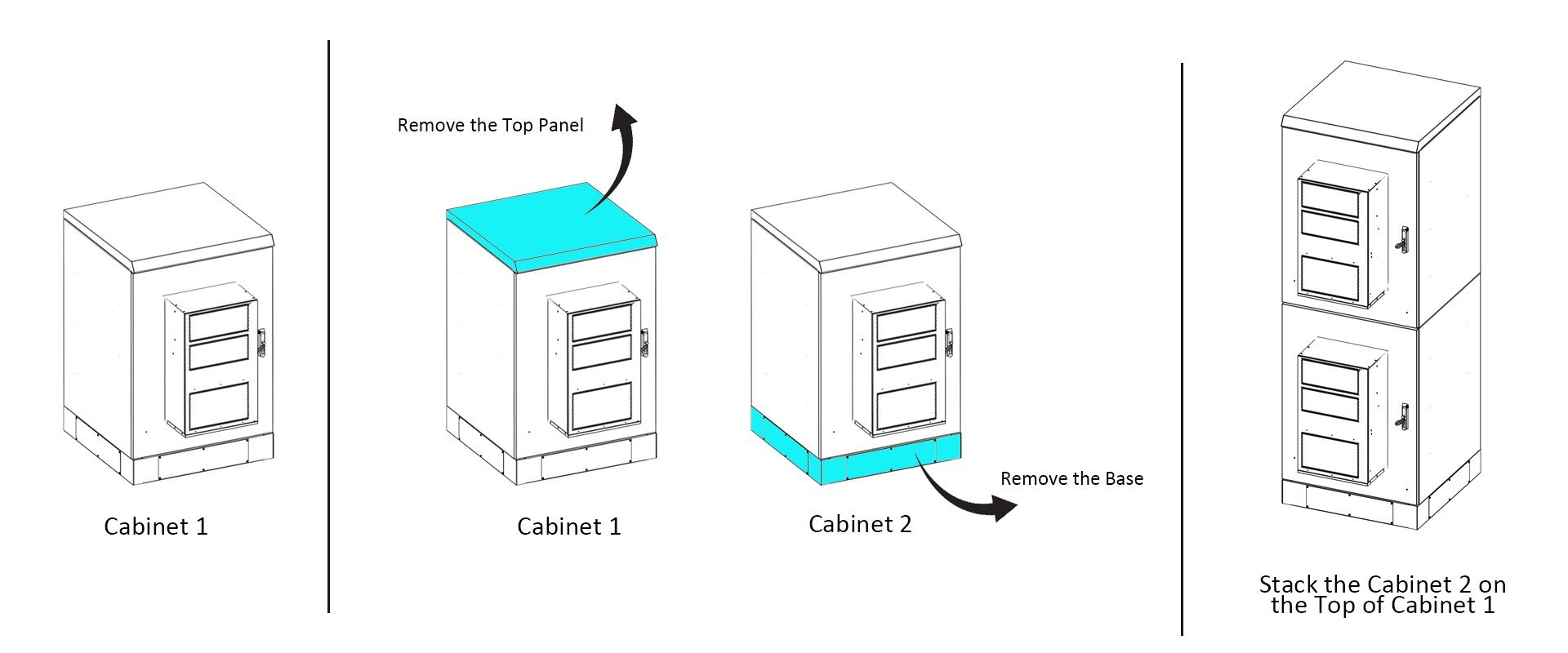

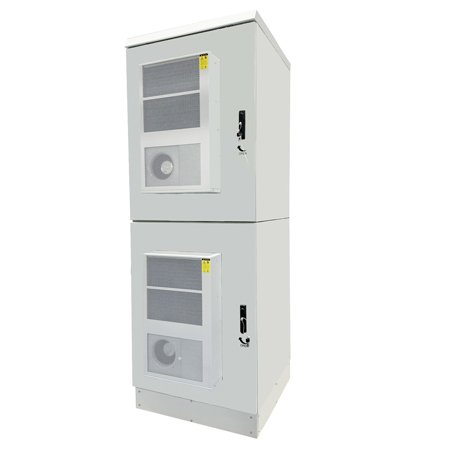

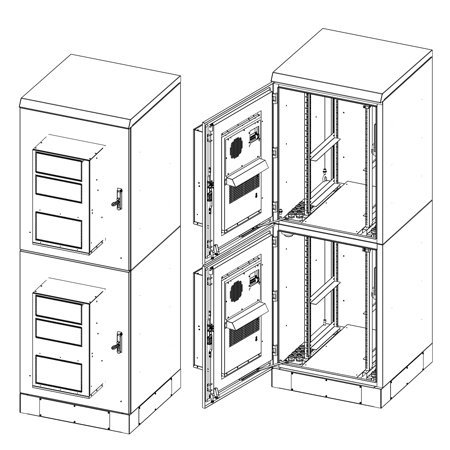

Easy to expand, to remove the top panel of the lower enclosure, and the plinth of the upper enclosure, to stack the enclosures together.
Adopt sandwich structure with 30mm thick PU/PIR high-insulation foam inside, reduce thermal radiation, providing further temperature protection for the internal batteries.

Technical Data
Ordering Information
Resources

Material	Galvanized Steel, 2.0 mm Thickness
Finish	Zinc Plate
Color	RAL7035 Light Grey

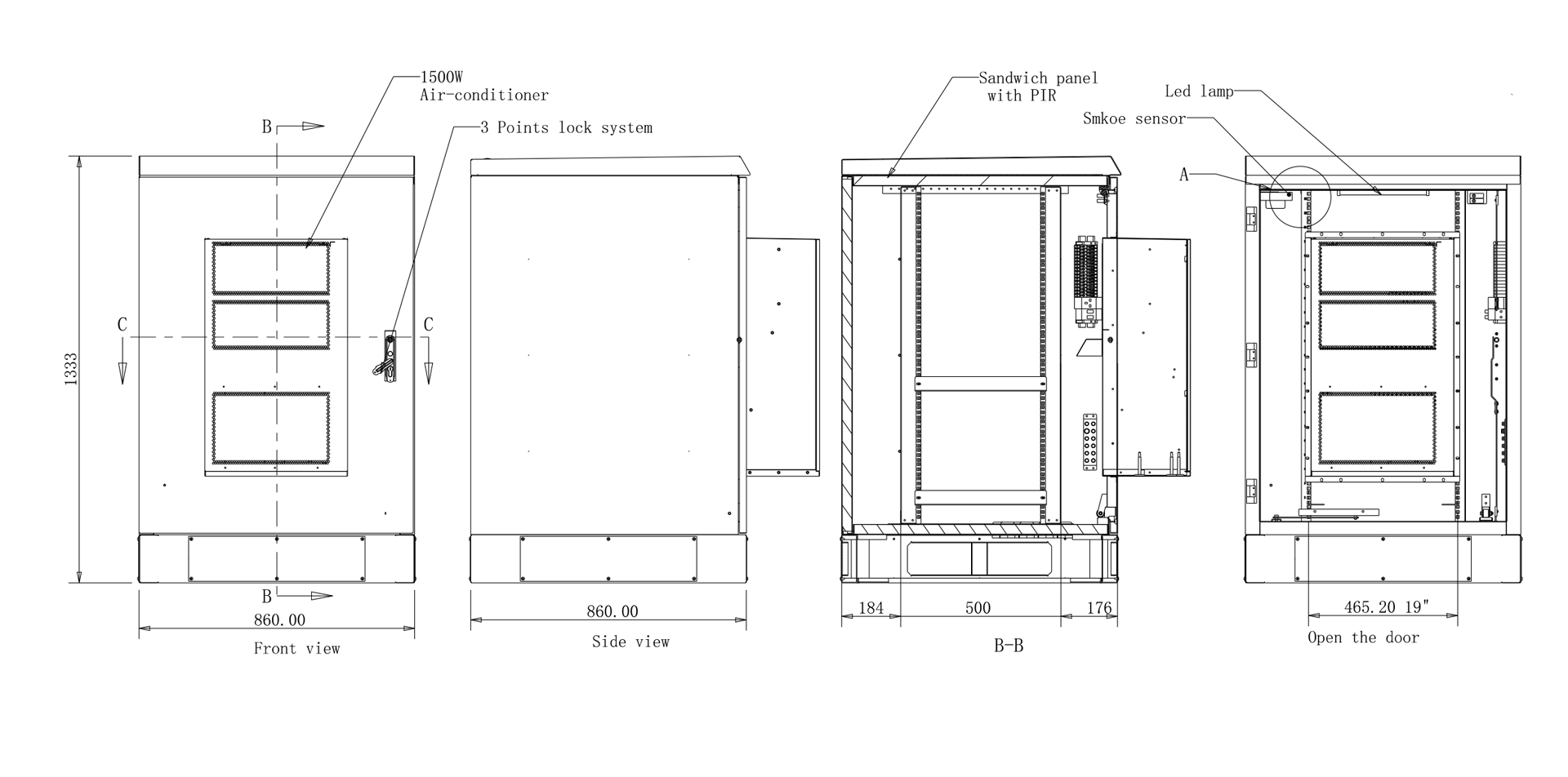

External Dimension	H1323xW860xD860 mm, including Plinth H150 mm
Protection Rating	IP55
Installation	Pad Mount
Access	Front Door
Max. Door Opening	120°
Rack Mount	19”
Loading Capacity	2200 lbs.
Locking Mechanism	3 Point Locking
Cable Access	2 pcs of PG29 Cable Entries at the Bottom
Other Included Parts	1Pc of Ground Bar, 4Pcs of L-Rails, 1*16 Pin Terminal Block (UK2.5N)
