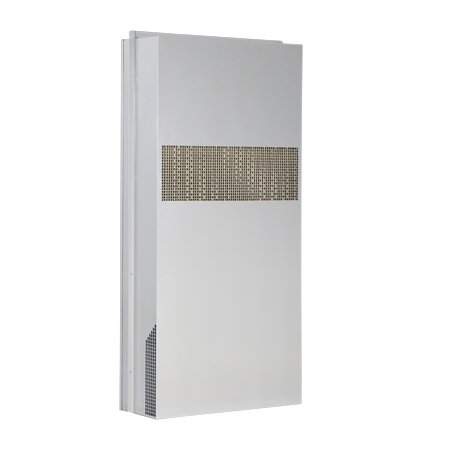

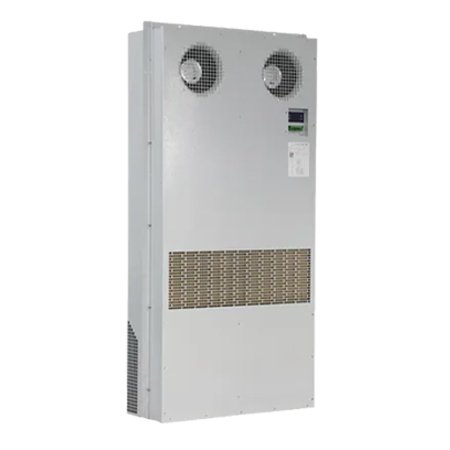

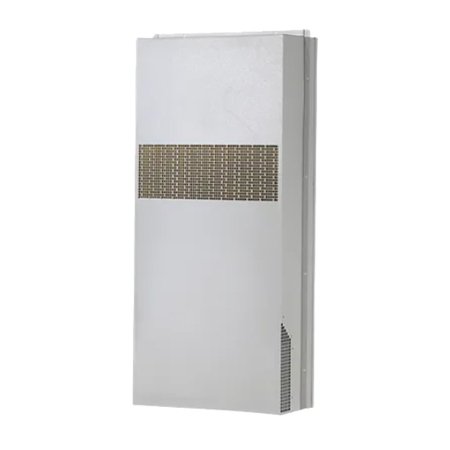

260W/K DC Power Heat Exchanger, CE Certificate
Heat exchangers play a vital role in prolonging equipment lifespans by efficiently transferring heat from the enclosure’s interior to the external atmosphere. They are especially suited for applications where electronics require operation at temperatures exceeding ambient air levels, heat exchangers operate as closed-loop systems. Different with air conditioner, heat exchangers are compressor-free resulting in reduced energy consumption and maintenance requirements.
Product Part Number: HCZA-260-005-XXX
- CE Certified
- Heating function available
- LED Display will show internal air temperature at normal working, while also show alarming code when alarming triggered.
- Technical Data
- Ordering Information
- Resources
| General Specification | |
| Material | Steel |
| Surface Treatment | Outdoor Type Power Coating |
| Color | RAL7035 |
| Outer Dimensions | H1300xW600xD240 mm |
| Net Weight | 46 kgs |
| Technical Parameters | |
| DC Power Supply Range | -48VDC (-40～-60VDC) |
| Heat Exchange Capacity | 260W/K |
| Rated Power Consumption | 328W |
| Rated Current | 6.8A |
| Inner Circulation Airflow Rate | 2240m³/h |
| Display | LED |
| Heater | 500W |
| Heater Power Supply Range | AC220 – 230V, 50Hz |
| Operating Temperature | -15°C to +65°C |
| Max. Noise Level | 62dB (A) @1.0m away |
| Protection Level | IP55 |
| Part No. | Description |
| HCZA-260-005-XXX | 260W/K DC Powered Outdoor Cabinet Heat Exchanger, CE Certified |
