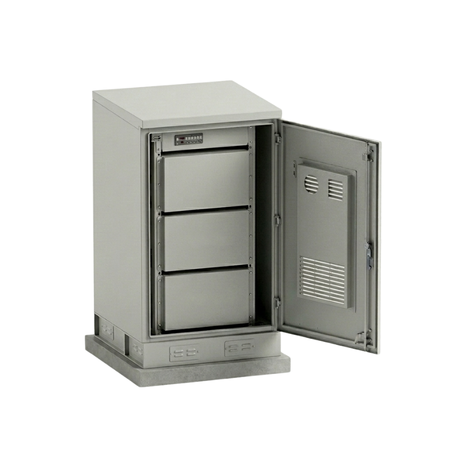

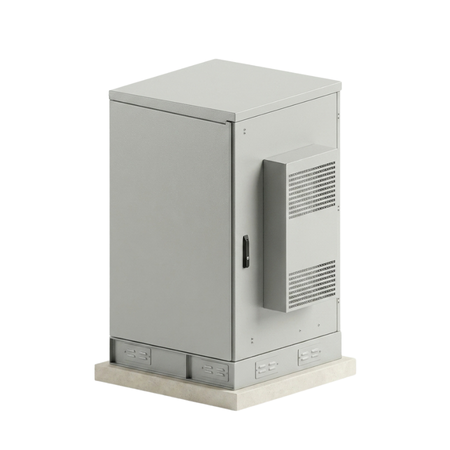

27U Outdoor Enclosure, 23inch Installation, 1kW Air Conditioner, IP55

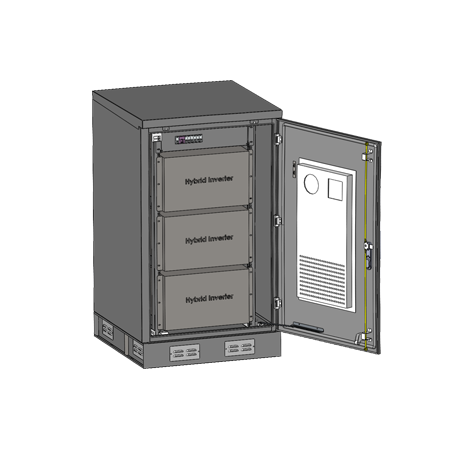

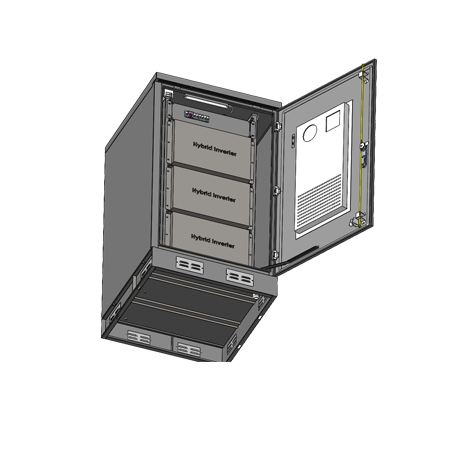

This 27U outdoor cabinet is specifically designed for the reliable installation of rack-mount hybrid inverters. Featuring a generous 23-inch width and an extended depth, the cabinet provides ample space to accommodate up to three rack-mount hybrid inverters simultaneously, making it an ideal solution for complex or redundant power configurations in traffic, telecom, and industrial applications.
Engineered for harsh outdoor environments, the cabinet adopts a dual-layer construction:
- Outer layer: High-strength galvanized steel for excellent mechanical protection and corrosion resistance.
- Inner layer: Thermal insulation material to minimize heat transfer and reduce thermal load.

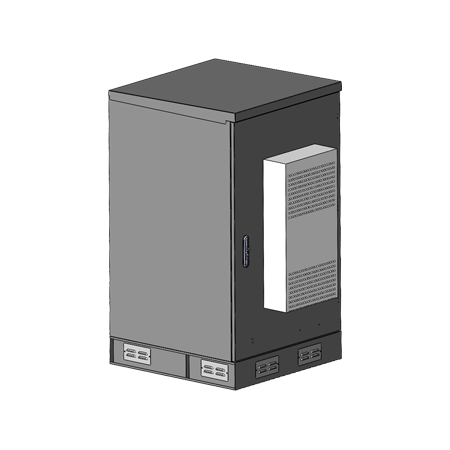

To further enhance cooling efficiency, the cabinet is equipped with a 1 kW AC air conditioner, ensuring stable operating temperatures even under high ambient conditions or heavy inverter loads.
Product Part Number: 0232700001
- Technical Data
- Ordering Information

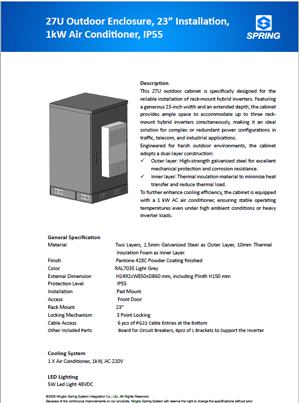

- Resources
| Material | Two Layers, 1.5mm Galvanized Steel as Outer Layer, 10mm Thermal Insulation Foam as Inner Layer. | |
| Finish | Pantone 428C Powder Coating finished | |
| Color | RAL7035 Light Grey | |
| External Dimension | Height | 1492 mm, including Plinth H150 mm |
| Width | 850 mm | |
| Depth | 860 mm | |
| Protection Level | IP55 | |
| Installation | Pad Mount | |
| Access | Front Door | |
| Rack Mount | 23” | |
| Locking Mechanism | 3 Point Locking | |
| Cable Access | 6 pcs of PG21 Cable Entries at the Bottom | |
| Other Included Parts | Board for Circuit Breakers, 6pcs of L Brackets to Support the Hybrid Inverters | |
| Part No. | Description |
| 0232700001 | 27U Outdoor Enclosure, Compatible with 23” Installation Hybrid Inverter, 1kW Air Conditioner, IP55 |
