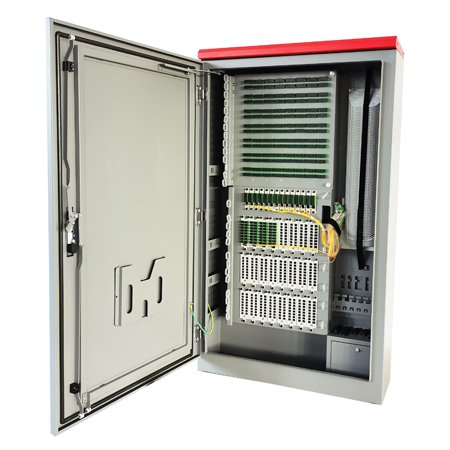

384F Outdoor Optical Distribution Hub
Ningbo Spring Outdoor Fiber Distribution Hub is designed to be installed in urban or suburban areas to facilitate the distribution and management of fiber optic cables for telecommunications networks. These hubs serve as intermediate points where fiber optic cables are interconnected, terminated, and distributed to serve various subscribers or endpoints within the local area.
Product Part Number: 5238401
- Compact layout, small footprint
- Cable trays included
- Splitters included
- Technical Data
- Ordering Information
- Resource
| Material | 1.5 mm Thickness Stainless Steel |
| Finish | Powder Coating |
| Color | RAL7035 Light Grey |
| Dimension | H1310xW750XD250 mm |
| Protection Level | IP55 |
| Installation | Pad Mount |
| Access | Front Door |
| Locking Mechanism | 3 Point Locking |
| Qty. of Splice Tray | 48pcs |
| Max. Fiber Counts | 384 Fibers |
| Included Part | 24pcs of 1×16 Splitters, 14pcs of 1×4 Splitters, 48pcs of Splice Trays, Cable Management Rings |
| Part No. | Description |
| 5238401 | 384F Outdoor Distribution Hub |
