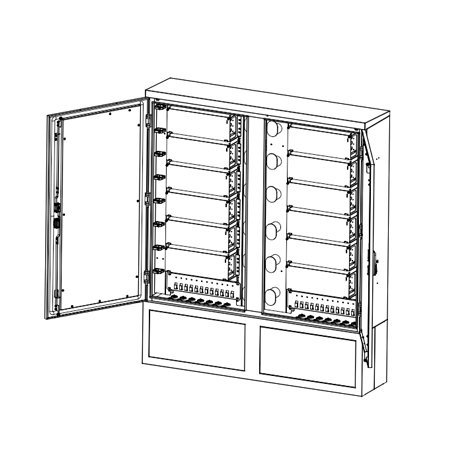

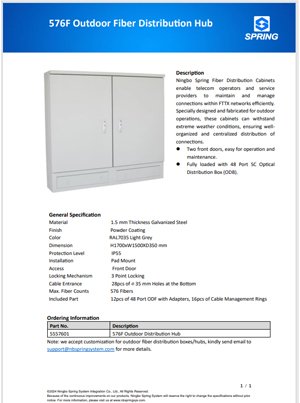

576F Outdoor Optical Distribution Hub
Ningbo Spring Fiber Distribution Cabinets enable telecom operators and service providers to maintain and manage connections within FTTX networks efficiently. Specially designed and fabricated for outdoor operations, these cabinets can withstand extreme weather conditions, ensuring well-organized and centralized distribution of connections.
Product Part Number: 5557601
- Two front doors, easy for operation and maintenance.
- Fully loaded with 48 Port SC Optical Distribution Box (ODF).
- Technical Data
- Ordering Information
- Resource
| Material | 1.5 mm Thickness Galvanized Steel |
| Finish | Powder Coating |
| Color | RAL7035 Light Grey |
| Dimension | H1700xW1500XD350 mm |
| Protection Level | IP55 |
| Installation | Pad Mount |
| Access | Front Door |
| Locking Mechanism | 3 Point Locking |
| Cable Entrance | 28pcs of ⌀ 35 mm Holes at the Bottom |
| Max. Fiber Counts | 576 Fibers |
| Included Part | 12pcs of 48 Port ODF with Adapters, 16pcs of Cable Management Rings |
| Part No. | Description |
| 5557601 | 576F Outdoor Distribution Hub |
