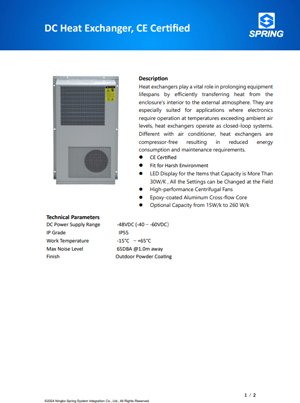

DC Heat Exchangers, CE Certified
Heat exchangers play a vital role in prolonging equipment lifespans by efficiently transferring heat from the enclosure’s interior to the external atmosphere. They are especially suited for applications where electronics require operation at temperatures exceeding ambient air levels, heat exchangers operate as closed-loop systems. Different with air conditioner, heat exchangers are compressor-free resulting in reduced energy consumption and maintenance requirements.
- CE Certified
- Fit for Harsh Environment
- LED Display for the Items that Capacity is More Than 30W/K , All the Settings can be Changed at the Field
- High-performance Centrifugal Fans
- Epoxy-coated Aluminum Cross-flow Core
- Optional Capacity from 15W/k to 260 W/k
- Technical Data
- Ordering Information
- Resources
| DC Power Supply Range | -48VDC (-40～-60VDC） |
| IP Grade | IP55 |
| Work Temperature | -15°C ～+55°C |
| Max Noise Level | 65DBA @1.0m away |
| Finish | Outdoor Powder Coating |
| Part No. | Capacity | Rated Power Consumption | Rated Current | Inner Circulation Air Flow Rate | N.W. | External Dimension (H*W*D) |
| HCZA-015-000-XXX | 15W/K | 50W | 1.0A | 220m³/h | 10 kgs | 470*150*150mm |
| HCZA-025-000-XXX | 25W/K | 50W | 1.0A | 227m³/h | 12 kgs | 500*200*160mm |
| HCZA-030-000-XXX | 30W/K | 52W | 1.08A | 340m³/h | 13.5 kgs | 516*288*190mm |
| HCZA-060-000-XXX | 60W/K | 150W | 0.5A | 400m³/h | 16 kgs | 545*455*240mm |
| HCZA-080-000-XXX | 80W/K | 200W | 4.2A | 750m³/h | 20 kgs | 545*455*240mm |
| HCZA-100-000-XXX | 100W/K | 120W | 3.2A | 580m³/h | 35 kgs | 990*412*200mm |
| HCZA-120-000-XXX | 120W/K | 152W | 3.8A | 700m³/h | 37 kgs | 990*412*200mm |
| HCZA-150-000-XXX | 150W/K | 164W | 3.4A | 1120m³/h | 35 kgs | 850*500*200mm |
| HCZA-180-000-XXX | 180W/K | 250W | 5.2A | 1650m³/h | 38 kgs | 1245*518*240mm |
| HCZA-210-000-XXX | 210W/K | 304W | 7.6A | 1390m³/h | 40 kgs | 1490*541*240mm |
| HCZA-260-000-XXX | 260W/K | 328W | 8.8A | 2240m³/h | 48 kgs | 1300*620*240mm |
