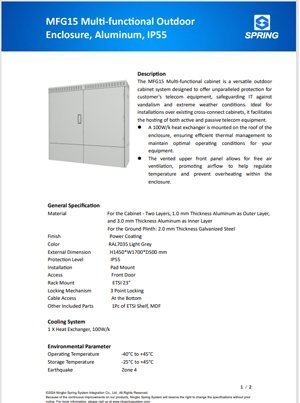

MFG15 Multi-functional Outdoor Enclosure, Aluminum
The MFG15 Multi-functional cabinet is a versatile outdoor cabinet system designed to offer unparalleled protection for customer’s telecom equipment, safeguarding it against vandalism and extreme weather conditions. Ideal for installations over existing cross-connect cabinets, it facilitates the hosting of both active and passive telecom equipment.
Product Part Number: 1015001
- A 100W/k heat exchanger is mounted on the roof of the enclosure, ensuring efficient thermal management to maintain optimal operating conditions for your equipment.
- The vented upper front panel allows for free air ventilation, promoting airflow to help regulate temperature and prevent overheating within the enclosure.
- Technical Data
- Ordering Information
- Resources
| Material (Enclosures) | Two Layers, 1.0 mm Thickness Aluminum as Outer Layer, and 3.0 mm Thickness Aluminum as Inner Layer | ||
| Material (Plinth) | 2.0 mm Thickness Galvanized Steel | ||
| Finish | Powder Coating | ||
| Color | RAL7035 Light Grey | ||
| External Dimension | Height | 1450 mm (57 inch), including the Roof and Plinth | |
| Width | 1700 mm (67 inch) | ||
| Depth | 500 mm (20 inch) | ||
| Protection Level | IP55 | ||
| Operating Temperature | -40°C to +45°C | ||
| Installation | Pad Mount | ||
| Access | Front Door | ||
| Rack Mount | ETSI 23″ | ||
| Locking Mechanism | 3 Point Locking | ||
| Cable Access | At the Bottom | ||
| Other Included Parts | 1Pc of ETSI Shelf, MDF | ||
| Part No. | Description |
| 1015001 | MFG15 Multi-functional Outdoor Enclosure, Aluminum, IP55 |
