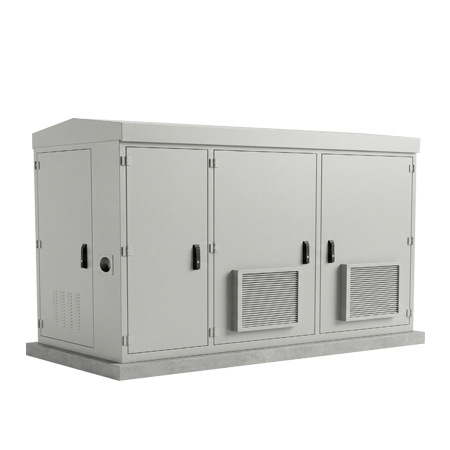

Multi-Bay Outdoor Street Cabinet
Designed for street-level telecom and utility networks, our Multi-Bay Outdoor Street Cabinet provides a rugged, secure, and highly customizable enclosure solution. Whether you need to house 19″ rack transmission equipment, 48VDC power systems, RRUs (Remote Radio Units), or ESB utility metering, this modular cabinet series adapts to your site-specific requirements. Available in standard 2, 3, or 4-bay configurations, with full customization supported.
Part Number: SPSC002 (2-Bay)|SPSC003(3-Bay)|SPSC004(4-Bay)
- Technical Data

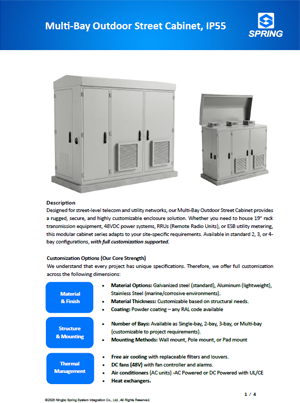

- Resources
| Material | 1.5 mm Thickness Galvanized Steel |
| Finish | Outdoor Powder Coating |
| Color | RAL7035 Light Grey |
| External Dimension | H1650xW520xD860 mm (2-Bay) |
| H1650xW1300xD860 mm (3-Bay) | |
| H1650xW2000xD860 mm (4-Bay) | |
| Protection Level | IP55 |
| Installation | Pad Mount |
| Access | Front Door / Side Door |
| Rack Mount | 19” |
| Locking Mechanism | 3 Point Locking |

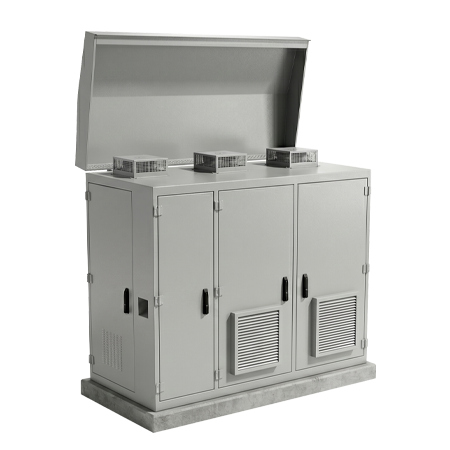

| Cooling | Fan Cooling on the Top |
| Other Included Parts | 1 x A4 Document Holder, Replacement Filters, LEDs, Door Sensors |
