60U Dual Bay Outdoor Enclosure, with AC or Heat Exchanger, IP55
This dual bay outdoor enclosure features three compartments. The bottom compartment houses 2 strings of 190AH VRLA batteries, ensuring reliable backup power. The left compartment is equipped with a 2kW air conditioner and a 210W heat exchanger to efficiently manage the thermal needs of active equipment. Meanwhile, the right compartment is dedicated to passive equipment such as optical fiber cables.
Constructed from aluminum, this enclosure offers robust protection against vandalism and harsh environmental conditions, ensuring the integrity and longevity of your equipment.
Product Part Number: 00030604 / 000306041
- Three compartments, for more efficient thermal management.
- With wall mounted air conditioner or heat exchanger, to cool the batteries and active equipment.
- Technical Data
- Ordering Information
- Resource
| Material | Single Layer, 3.2 mm Thickness Aluminum |
| Finish | Outdoor Powder Coating |
| Color | RAL7035 Light Grey |
| External Dimension | H1963xW1631xD931 mm |
| Protection Rating | IP55 |
| Installation | Pad Mount |
| Access | Front Door |
| Rack Mount | 23” |
| Locking Mechanism | 3 Point Locking |
| Cable Access | At the Rear Panel of Battery Compartment |
| Other Included Parts | 5pcs of Horizontal Cable Managers and 2pcs of Vertical Cable Managers |
| Part No. | Description |
| 00030604 | 60U Dual Bay Outdoor Enclosure, with 210W Heat Exchanger, IP55 |
| 000306041 | 60U Dual Bay Outdoor Enclosure, with 2kW Air Conditioner, IP55 |
Related Products

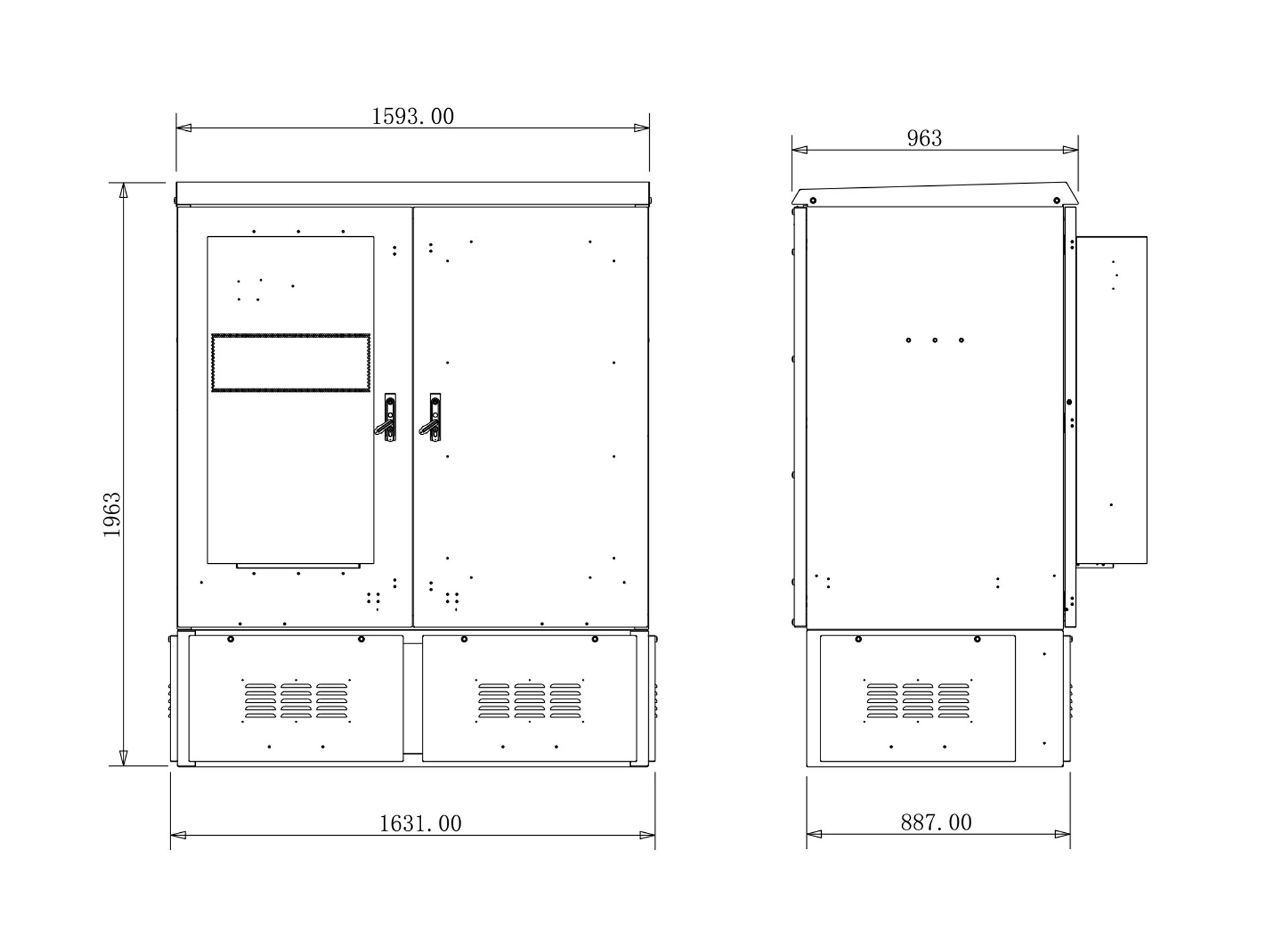

Product Dimensions

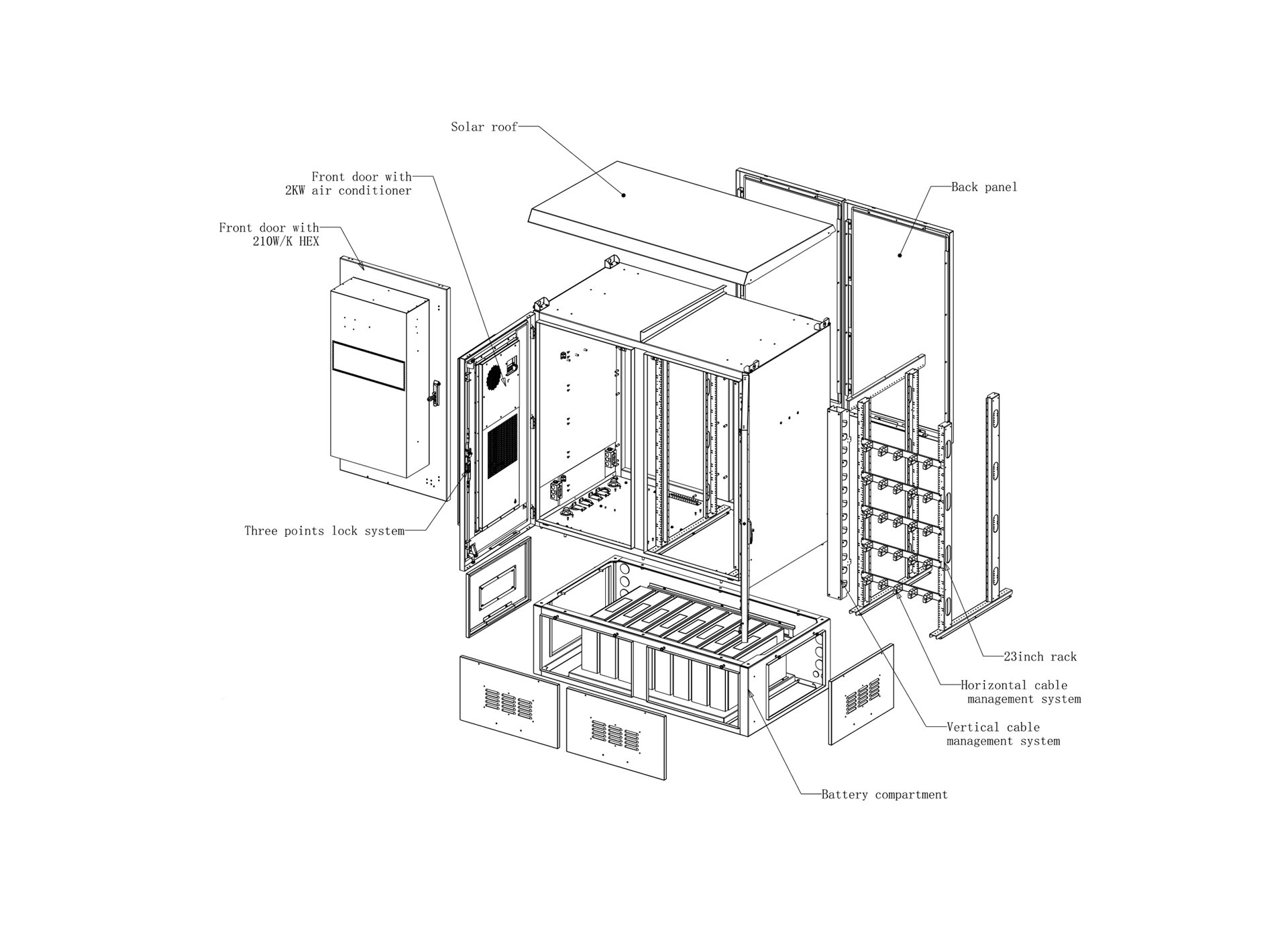

Explosive View
Product at Workshop
