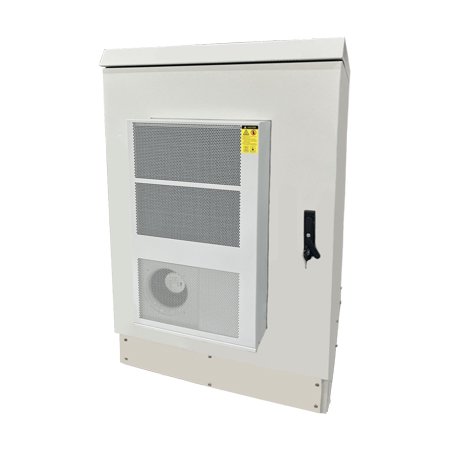

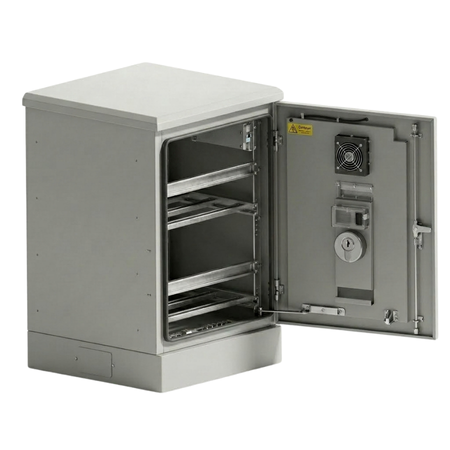

18U Outdoor Enclosure, Galvanized Steel, TEC Air Conditioner, IP55/IP56
The 18U outdoor enclosure delivers reliability and versatility for organizing and securing your active and passive equipment. With three optional mounting methods—wall mount, pole mount, and pad mount—it’s easy to deploy even in space-limited areas.
Featuring an IP55 rating, this enclosure is well-suited for outdoor environments, providing protection against dust and water ingress. Equipped with a TEC air conditioner, along with the fan, it ensures efficient cooling to prevent overheating and safeguard your equipment.
Product Part Number: SPB2814-201
- Double wall construction
- Three mounting ways
- Cooling system consists of TEC air conditioner and fan
- Technical Data
- Ordering Information
- Resources
| Material | Double wall, 1.5 mm Thickness Galvanized Steel as Outer Layer, and 10 mm PEF Cotton Insulation as Inner Layer | |
| Finish | Power Coating | |
| Color | RAL7035 Light Grey | |
| External Dimension | Height | 1100 mm (43 inch) |
| Width | 720 mm (28 inch) | |
| Depth | 701 mm (27 inch) | |
| Protection Level | IP55 | |
| Installation | Wall Mount/Pole Mount/Pad Mount | |
| Access | Front Door | |
| Max. Door Opening | 105° | |
| Rack Mount | 19” | |
| Locking Mechanism | 3 Point Locking | |
| Cable Access | At the Bottom | |
| Other Included Parts | PDU | |
| Part No. | Description |
| SPB2814-201 | 18U Outdoor Enclosure, Galvanized Steel, TEC Air Conditioner, IP55/IP65 |
