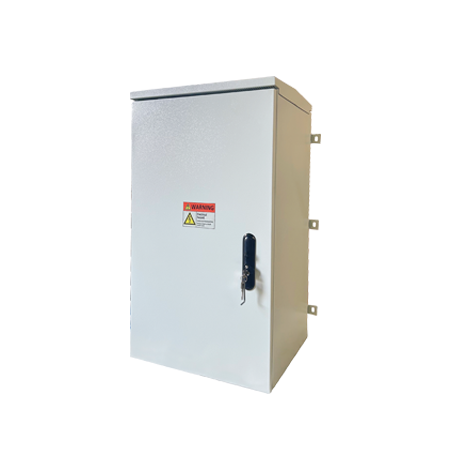

19U IP55 Outdoor Smart Box with UPS
Designed specifically for Middle East outdoor traffic systems, this 19U IP55 Smart Outdoor Box provides reliable power distribution, backup protection, and environmental safety for critical traffic infrastructure, including CCTV cameras and data storage equipment.
This robust, ready-to-deploy solution ensures uninterrupted power, secure equipment housing, and efficient thermal management – essential for reliable traffic monitoring and data logging in demanding outdoor environments.
Product Part Number: SPSOB0001
- Technical Data
- Ordering Information
- Resources
| Material | 1.5mm thickness galvanized steel | |
| Finish | Power Coating | |
| Color | RAL7035 Light Grey | |
| External Dimension | Height | 950 mm |
| Width | 535 mm | |
| Depth | 450 mm | |
| Protection Level | IP55 | |
| Installation | Wall Mount | |
| Access | Front Door | |
| Max. Door Opening | 115° | |
| Rack Mount | 19” | |
| Locking Mechanism | 3 Point Locking | |
| Cable Access | PG29 (Qty: 3pcs) and PG21 (Qty: 1pc) at the bottom | |

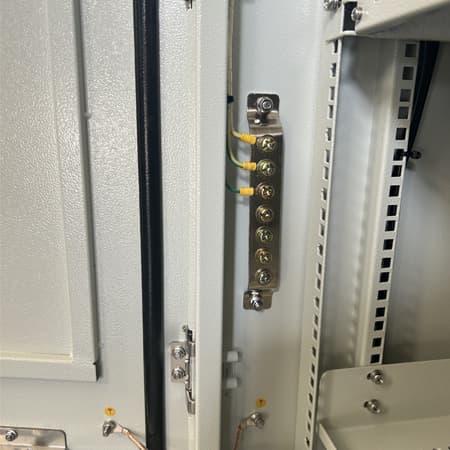

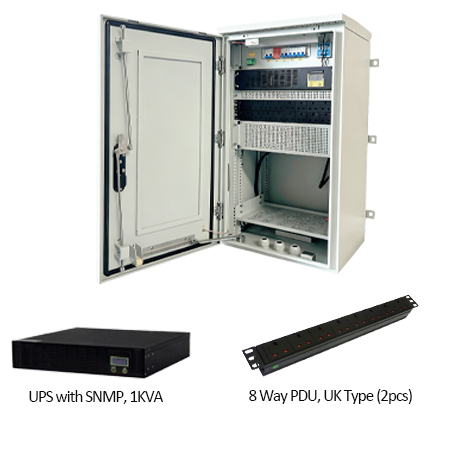

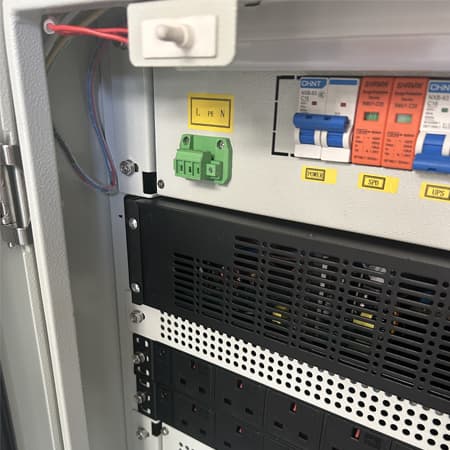

| Other Included Parts | UPS with SNMP, 1KVA (Qty: 1pc); 16A AC 2P Circuit Breaker (Qty: 4pcs); SPD (Qty: 1pc); 8-way PDU, UK Type (Qty: 2pcs); DIN Rail for Switch (Switch is excluded) (Qty: 1pc); Shelf for Batteries (Batteries are excluded) (Qty: 1pc); 2-Fan Unit (Qty: 1pc); Door Sensor (Qty: 1pc); AC LED Light (Qty: 1pc); Grounding Bar (Qty: 1pc) | |
| Part No. | Description |
| SPSOB0001 | 19U IP55 Smart Outdoor Box with UPS |
Related Products

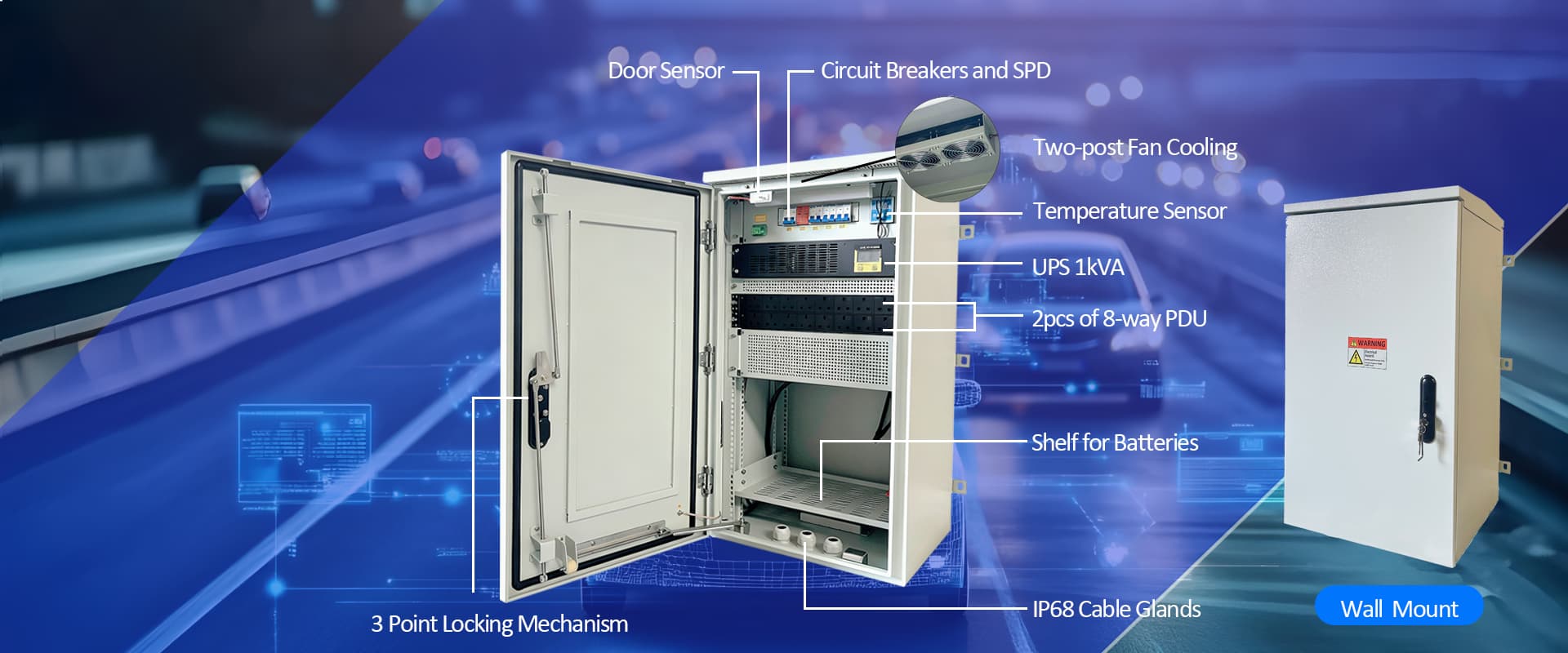

What’s Inside the Outdoor Smart Box?
Application Scenarios

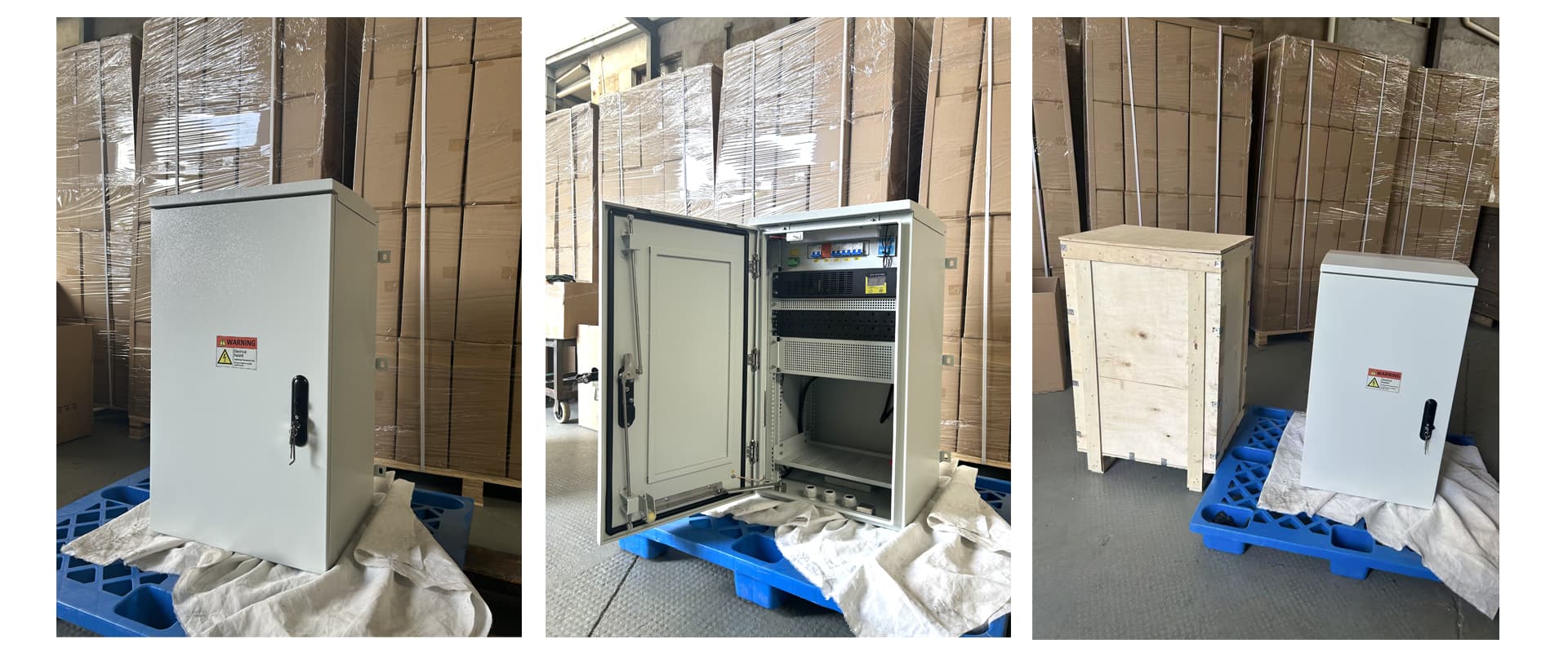

Product before Shipment
With over 20 years of expertise, Ningbo Spring is a trusted manufacturer of outdoor cabinets. Our dedicated engineering team specializes in custom designs, delivering tailored solutions for your specific project requirements. For inquiries or to discuss your needs, please contact us.
