SiteVault Anti-Theft Outdoor Cabinet
Engineered for mission-critical security and extended operational life in outdoor environments, the SiteVault Series Anti-Theft Outdoor Cabinet delivers a robust and reliable containment solution for hybrid telecom and energy storage infrastructure. Its defense-grade construction features a fully welded body and a reinforced, multi-layer wall design to provide maximum forced-entry resistance and long-term structural durability.
With a certified IP65 environmental protection rating, the cabinet is built to withstand severe weather, dust, and moisture ingress. The heavy-duty internal framework integrates a standard 42U 19-inch equipment rack alongside a dedicated, reinforced support structure for large-scale battery systems, ensuring organized, secure, and adaptable installation for both active and backup power equipment.
Ideal for secure outdoor deployments in telecommunications, distributed energy storage, and edge computing applications, the SiteVault Series is designed to protect valuable assets against theft, tampering, and harsh environmental conditions.
Product Part Number: X960

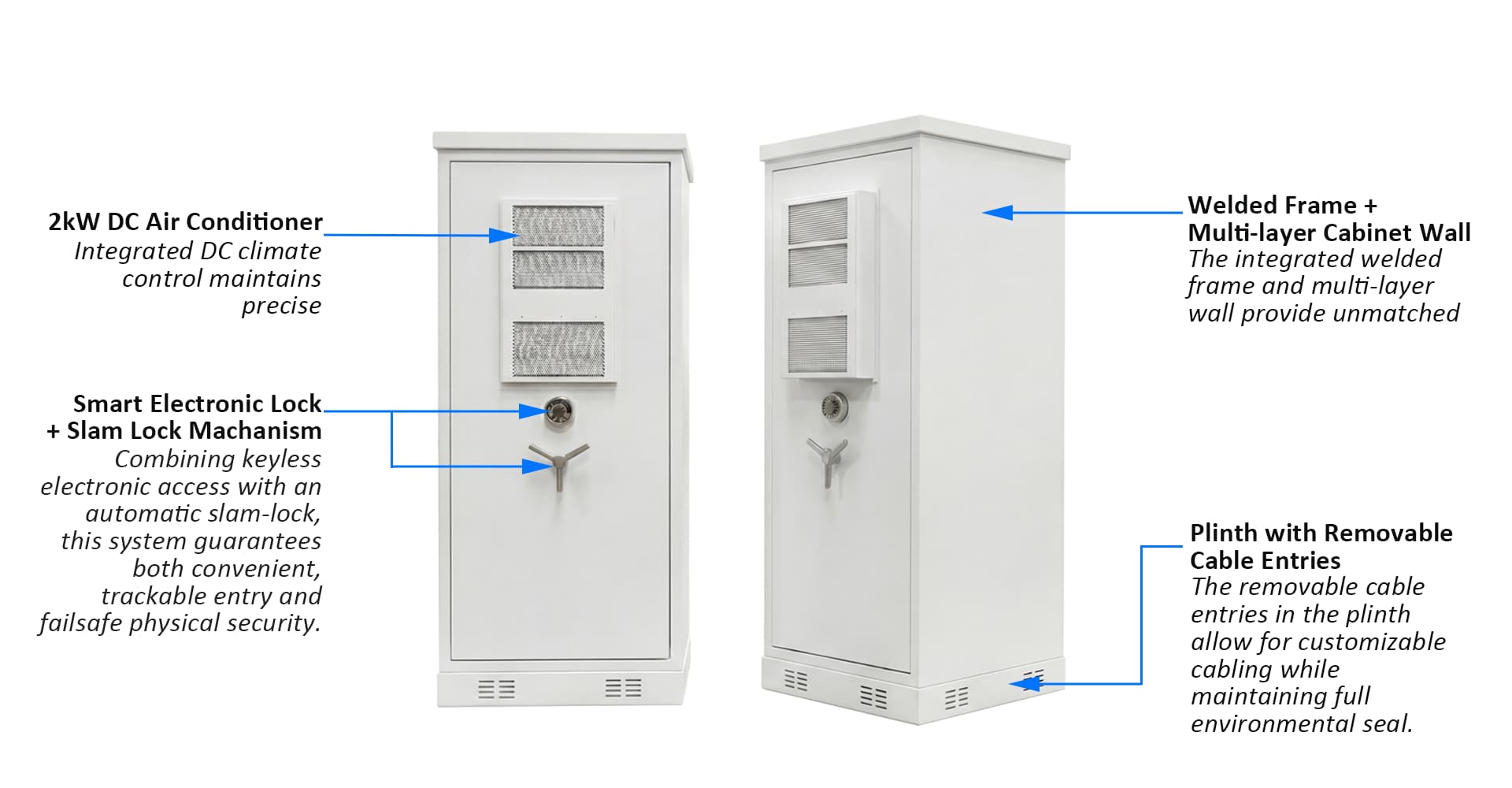

- Maximum Security & Forced Entry Resistance:Fully welded body and multi-layer wall structure, along with heavy-duty hinges, to effectively deter unauthorized access and protect critical on-site assets.
- Intelligent Thermal Management: An integrated system featuring a door-mounted 2kW air conditioner and 30mm thermal insulation foam that reliably maintains optimal operating temperatures.
- Advanced Smart Lock: Combines smart electronic access with a slam-lock and four stainless steel lock bolts, assuring reliable, high-strength protection.
- Technical Data
- Ordering Information
- Resources
| Material | Multi-layer Cabinet Wall, 5mm Mild Steel for Plinth, 3mm Mild Steel as Door Skin | |
| Finish | Pantone 428C Powder Coating | |
| Color | RAL7035 Light Grey | |
| External Dimension | Height | 2326 mm, including Plinth H150 mm |
| Width | 960 mm | |
| Depth | 1010 mm | |
| Protection Level | IP65 | |
| Installation | Pad Mount | |
| Access | Front Door | |
| Rack Mount | 19” Rack (3mm Mild Steel) | |
| Locking Mechanism | Smart Electronic Lock, Slam-lock Mechanism, 4 Stainless Steel Lock Bolts and Independent Internal Mechanical Lock | |
| Cable Access | 32pcs of PG29 at the Bottom and Removable Cable Entries on Plinth | |
| Other Included Parts | 10 sets of Battery Shelves (2.0 mm MS), Earthing Bar, Mounting Hardware Kit | |
| Part No. | Description |
| X960 | SiteVault Anti-theft Outdoor Cabinet, IP65 |
