26U InstalPower Telecom Outdoor Enclosure
The InstaPower Telecom Outdoor Enclosures are designed to meet the specific needs of tower companies and operators. These versatile cabinets offer a modular design, allowing you to choose from various configurations, including main cabinets, operator cabinets, and battery extension cabinets.
The enclosure’s durable construction, featuring high-quality materials and a two-layer design, safeguards sensitive equipment from harsh outdoor conditions. The enclosure’s powerful 1000W door-mounted air conditioner ensures optimal internal temperatures, extending equipment lifespan.
Product Part Number: 0237550001
- Tower mount or pole mount
- Scalable system for tower companies and MNOs
- Compact and robust
- Smart locking system included
- Monitoring system included
- Technical Data
- Ordering Information
- Resources
| Material | Double wall, 2 mm Thickness Hot Dip Galvanized Steel as Outer Layer, and 10 mm Thermal Insulation Foam as Inner Layer |
| Finish | Powder Coating |
| Color | RAL7035 Light Grey |
| External Dimension | H1291xW750xD720 mm (the cabinet itself, excluding the bottom shell and pole, refer to technical drawing) |
| Protection Level | IP55 |
| Installation | Wall Mount/Pole Mount |
| Access | Front Door |
| Rack Mount | 19” |
| Locking Mechanism | 3-Point Smart Locking System |
Ordering Information
| Part No. | Description |
| 0237550001 | InstalPower Telecom Outdoor Enclosure, 26U |
Related Products

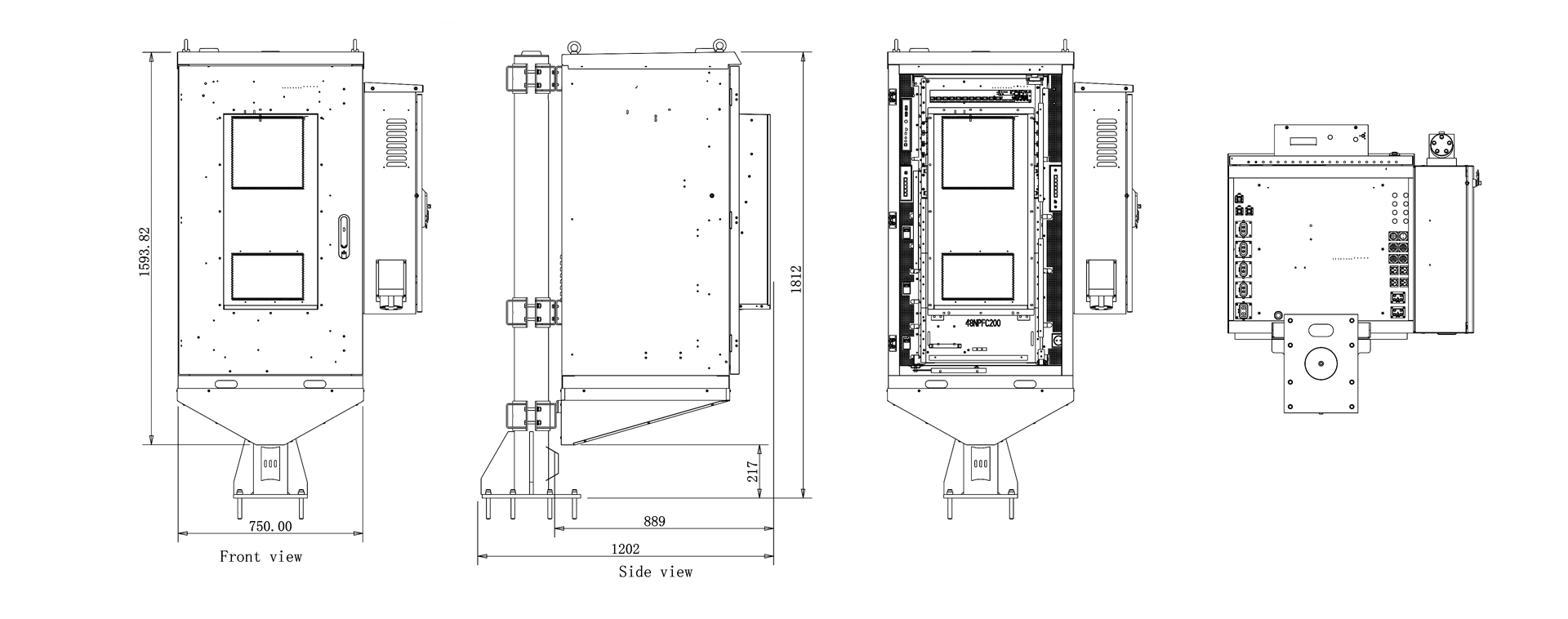

Product Dimensions

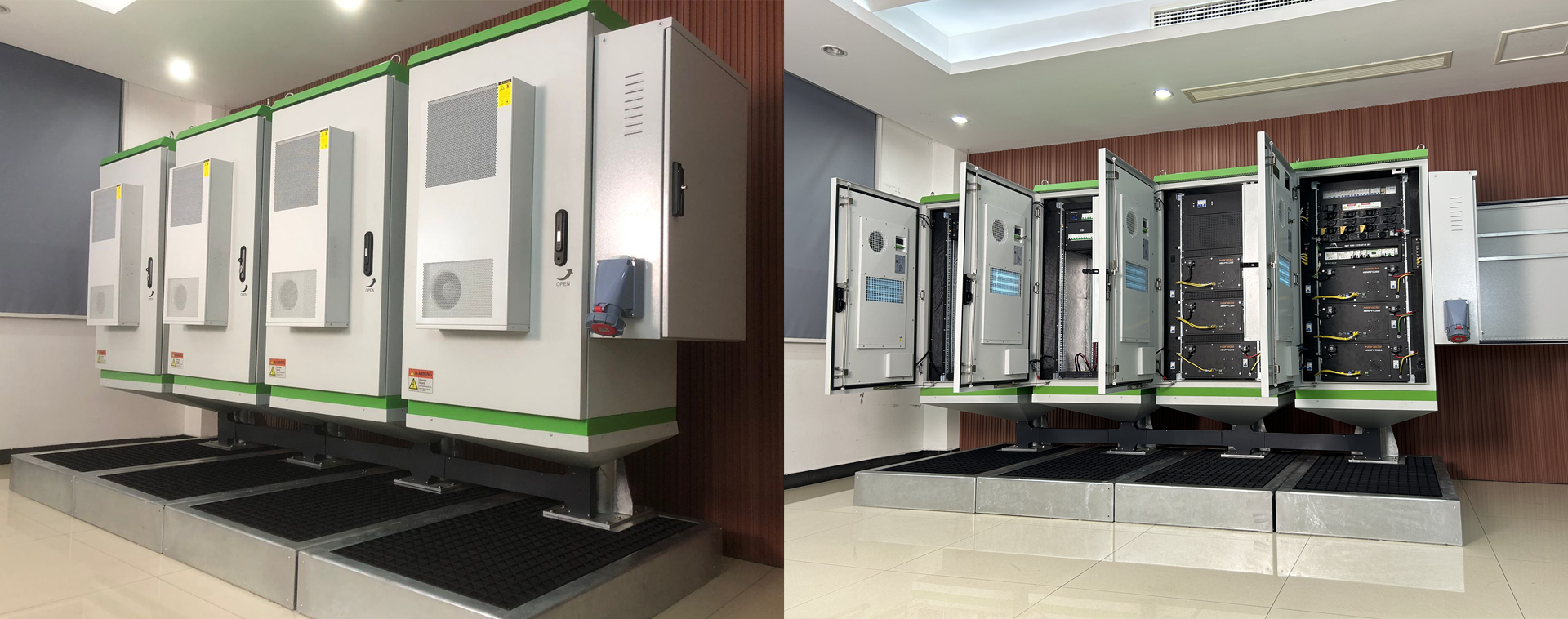

More Product Pictures
