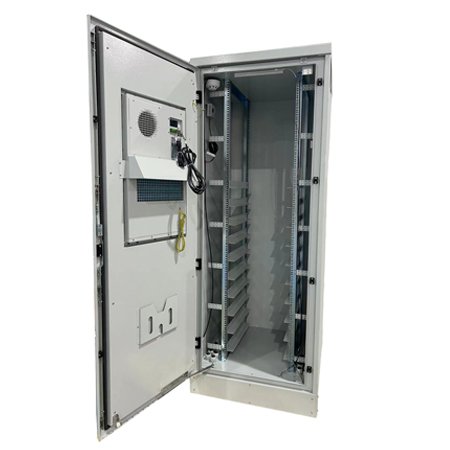

42U Outdoor Enclosure, Galvanized Steel, 2kW Air Conditioner, IP55
The 42U outdoor enclosures/cabinets are built with welded galvanized steel and feature a powder coating finish, ensuring durability and resilience against environmental factors.
Product Part Number: 02375011000

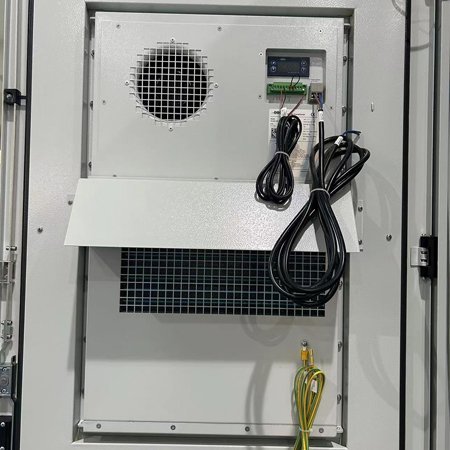

- Equipped with 2kW air conditioner, ensuring the adequate climate management inside the enclosure.
- Adopt sandwich structure with 30mm thick PU/PIR high-insulation foam inside, reduce thermal radiation, providing further temperature protection for the internal batteries.
- 4 Point Locking Mechanism
- Technical Data
- Ordering Information
- Resources
| Material | Three Layers, 2.0 mm Thickness Galvanized Steel for Outer Layer, 3.0 mm Thickness of Insulation Middle Layer, and 0.8 mm Thickness Galvanized Steel for Inner Layer |
| Finish | Pantone 428C Powder Coating finishes |
| Color | RAL7035 Light Grey |
| External Dimension | H2250xW860xD860 mm, including plinth H150 mm |
| Protection Rating | IP55 |
| Installation | Pad Mount |
| Access | Front Door |
| Loading Capacity | 3000lbs. |
| Rack Mount | 19” |
| Locking Mechanism | 4 Point Locking |
| Cable Access | 2 sets of 8-PG29 at the Bottom |
| Included Accessories | 1xDocument Holder, 1xUK Type 220V Outlet, 1xGrounding Bar, 20xL-rail, 1×16 Pin Terminal Block (UK2.5N) |
| Part No. | Description |
| 02375011000 | 42U Outdoor Enclosure, Galvanized Steel, 2kW Air Conditioner, IP55 |
