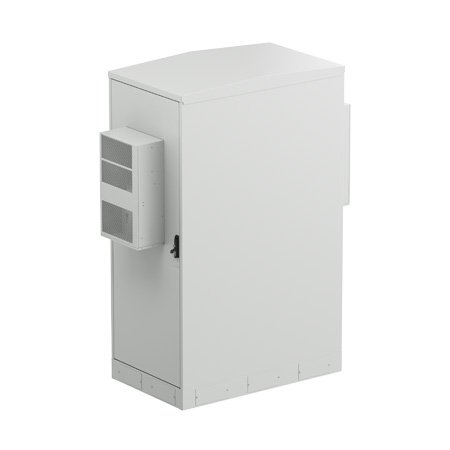

84U Dual Depth Outdoor Enclosure, 2x2kW Air Conditioners, IP55
The 238401 84U Dual Bay Outdoor Enclosure is designed to supply power in outdoor base station, to accommodate the batteries to provide sufficient power supply for broadband equipment and switches. With the front and rear dual bay (42U per bay, total 84U), the enclosure is capable to accommodate 16 sets of 200AH internally, with a maximum capacity of up to 3200AH. The cabinets are equipped with cooling air conditioner to maintain the internal temperature between 30~40℃, suitable for various high-temperature environments. Various monitoring sensors such as temperature, humidity, smoke, and access control are installed in the enclosure, allowing personnel to monitor the operation status of the cabinets in real-time.
Product Part Number: 238401
- The front-to-back airflow design enhances cooling efficiency.
- Both of front and rear doors are equipped with 2kW 48VDC air conditioner, ensuring the adequate climate management inside the enclosure, to extend the battery life.
- Adopt double-wall structure with 30mm thick PU/PIR high-insulation foam inside, reduce thermal radiation, providing further temperature protection for the internal batteries.
- Technical Data
- Ordering Information
- Resources
| Material | Three Layers, 2.0 mm Thickness Galvanized Steel as Outer Layer, 3.0 mm Insulation as Middle Layer, and 0.8 mm Thickness Galvanized Steel as Inner Layer | |
| Finish | Polyester Powder Coating | |
| Color | RAL7035 Light Grey | |
| Dimension | Height | 2300 mm (90.55 inch), Included Plinth 150 mm Height |
| Width | 1400 mm (55.11 inch) | |
| Depth | Depth 860 mm (33.86 inch) | |
| Weight | 650 kgs with AC. Net. | |
| Protection Rating | IP55 | |
| Installation | Pad Mount | |
| Access | Front/Rear Door | |
| Rack Mount | 19” | |
| Locking Mechanism | 4 Point Locking, Lock Cylinder Assembled with Protective Cover | |
| Cable Access | 4 sets of 8-M29 Cable Entries at the Bottom | |
| Other Included Parts | 1x Document Holder, 1xUK Type 220V Outlet, 1x Grounding bar, 36xL-Rail, 1*16 Pin Terminal Block (UK2.5N) | |
| Part No. | Description |
| 238401 | 84U Front and Rear Dual Bay Outdoor Enclosure, Galvanized Steel |
| 238401A | 84U Front and Rear Dual Bay Outdoor Enclosure, Aluminum |
| 238401S | 84U Front and Rear Dual Bay Outdoor Enclosure, Stainless Steel |
