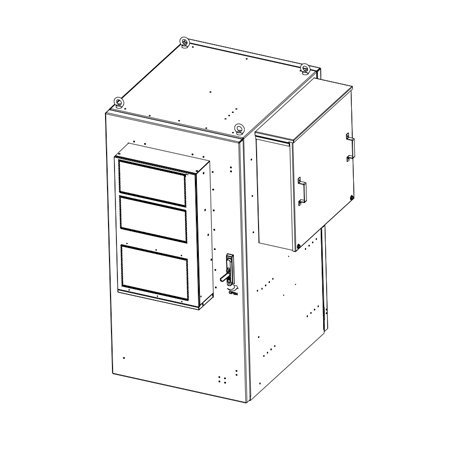

30U Outdoor Enclosure, Aluminum, 1.5kW Air Conditioner, NEMA 4
The 30U outdoor cabinet enclosure efficiently houses power equipment, batteries, and telecom gear, providing a robust and cost-effective solution in a single package. It comes equipped with a UL certified 1500W air conditioner and inner PIR insulation foam, ensuring optimal thermal management and energy efficiency.
Product Part Number: 3029330001
- NEMA 4 enclosure for protection against water, ice, snow, and moisture

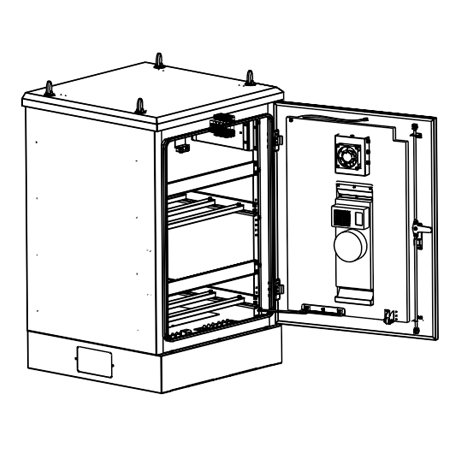

- Front and rear door access for easy installation and maintenance.
- Technical Data
- Ordering Information
- Resources
| Material | 3.0 mm Thickness Aluminum for Outside Layer with 10 mm Thickness Inner RIP Insulation Foam |
| Finish | Powder Coating |
| Color | Off-white |
| External Dimension | H1439xW737xD858 mm |
| Protection Rating | NEMA 4 |
| Installation | Pad Mount |
| Access | Front Door and Rear Door |
| Max. Door Opening | 120° |
| Rack Mount | 23” |
| Locking Mechanism | 3 Point Locking |
| Cable Access | KO-hole at the Bottom |
| Part No. | Description |
| 3029330001 | 30U Outdoor Enclosure, Aluminum,1.5kW Air Conditioner, NEMA 4 |
