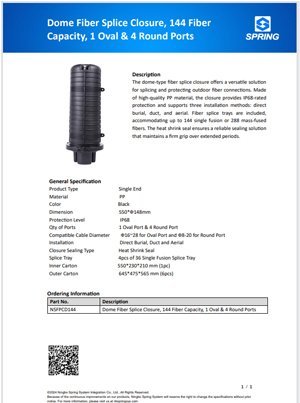

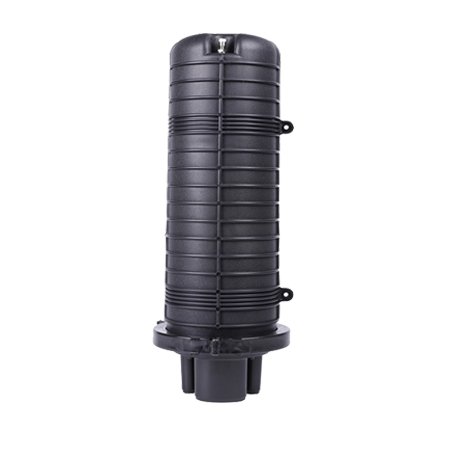

Dome Fiber Splice Closure, 144 Fiber Capacity, 1 Oval & 4 Round Ports

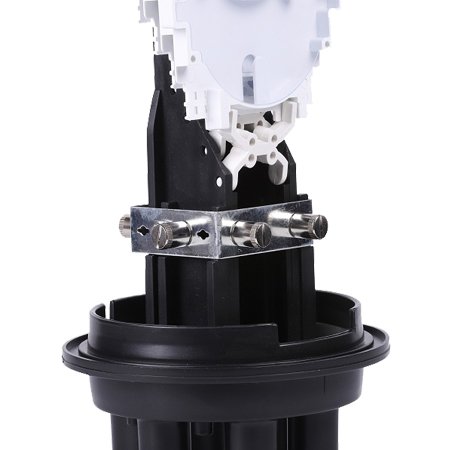

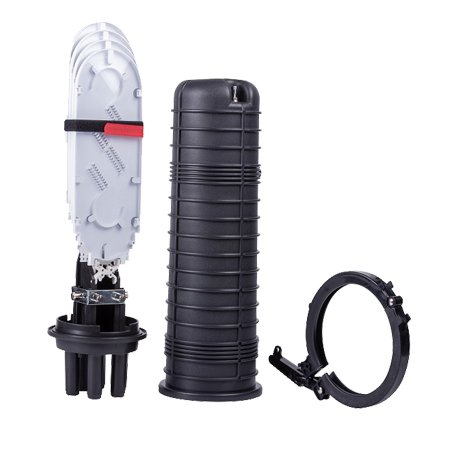

The dome-type fiber splice closure offers a versatile solution for splicing and protecting outdoor fiber connections. Made of high-quality PP material, the closure provides IP68-rated protection and supports three installation methods: direct burial, duct, and aerial. Fiber splice trays are included, accommodating up to 144 single fusion or 288 mass-fused fibers. The heat shrink seal ensures a reliable sealing solution that maintains a firm grip over extended periods.
- Technical Data
- Ordering Information
- Resource
| Product Type | Single End |
| Material | PP |
| Color | Black |
| Dimension | 550*Ф148mm |
| Protection Level | IP68 |
| Qty of Ports | 1 Oval Port & 4 Round Port |
| Compatible Cable Diameter | Ф16~28 for Oval Port and Ф8-20 for Round Port |
| Installation | Direct Burial, Duct and Aerial |
| Closure Sealing Type | Heat Shrink Seal |
| Splice Tray | 4pcs of 36 Single Fusion Splice Tray |
| Inner Carton | 550*230*210 mm (1pc) |
| Outer Carton | 645*475*565 mm (6pcs) |
| Part No. | Description |
| NSFPCD144 | Dome Fiber Splice Closure, 144 Fiber Capacity, 1 Oval & 4 Round Ports |
