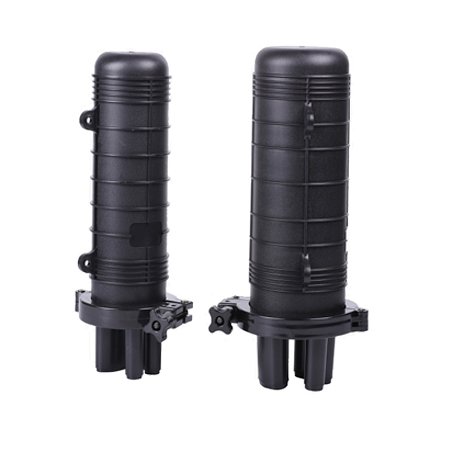

Dome Fiber Splice Closure, 48 Fiber Capacity, 1 Oval & 3 Round Ports

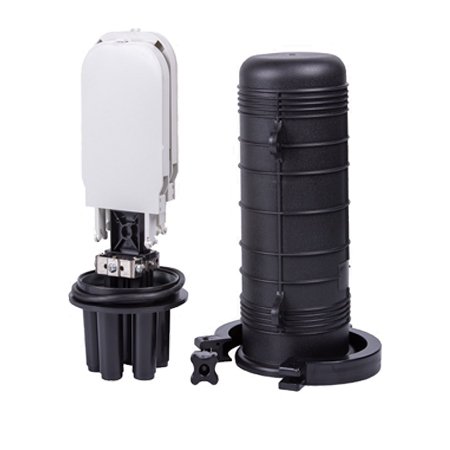

The dome-type fiber splice closure offers a versatile solution for splicing and protecting outdoor fiber connections. Made of high-quality PP material, the closure provides IP68-rated protection and supports three installation methods: direct burial, duct, and aerial. Fiber splice trays are included, accommodating up to 48 single fusions. The heat shrink seal ensures a reliable sealing solution that maintains a firm grip over extended periods.
- Technical Data
- Ordering Information
- Resource
| Product Type | Single End |
| Material | PP |
| Color | Black |
| Dimension | 340*Ф110 mm |
| Protection Level | IP68 |
| Qty of Ports | 1 Oval Port & 3 Round Port |
| Compatible Cable Diameter | Ф11~23 for Oval Port and Ф8-20 for Round Port |
| Installation | Direct Burial, Duct and Aerial |
| Closure Sealing Type | Heat Shrink Seal |

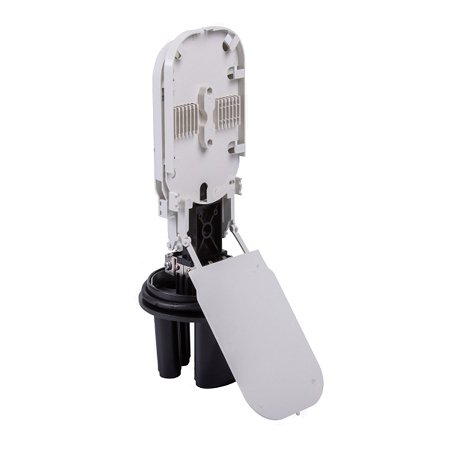

| Splice Tray | 2pcs of 24 Single Fusion Splice Tray |
| Inner Carton | 350*180*140 mm (1pc per carton) |
| Outer Carton | 555*365*575 mm (12pcs per carton) |
| Part No. | Description |
| NSFPCD048 | Dome Fiber Splice Closure, 48 Fiber Capacity, 1 Oval & 3 Round Ports |
