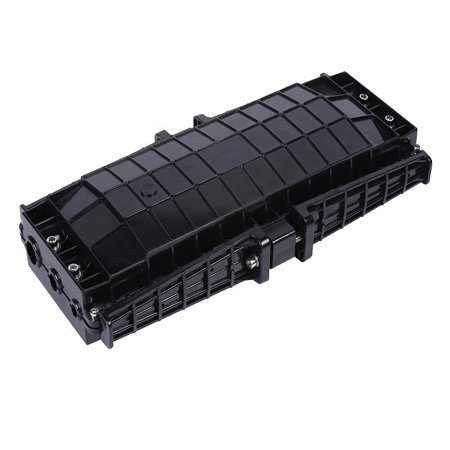

Horizontal Fiber Splice Closure, 96 Fiber Capacity, 3 In 3 Out
Horizontal fiber optic splice enclosures are essential components in CATV, telecommunications, and fiber optic networks. Known for their fast and reliable sealing abilities, these enclosures are suitable for duct installations, direct burial, and aerial fiber optic cable setups. Our horizontal fiber splice enclosures, crafted from high-tension PP and PC/ABS alloy, provide exceptional protection against environmental heat and oxygen damage while being resistant to water, fire, and shock.
- Technical Data
- Ordering Information
- Resource
| Product Type | In-line |
| Material | PP and PC/ASB Alloy |
| Color | Black |
| Dimension | 442*213*114 mm |
| Protection Level | IP68 |
| Qty of Ports | 3 In 3 Out |
| Compatible Cable Diameter | Ф13/Ф16/Ф23 for 3-in Port and 3-out Port |
| Installation | Direct Burial, Duct and Aerial |
| Closure Sealing Type | Mechanical Sealing with Screws |

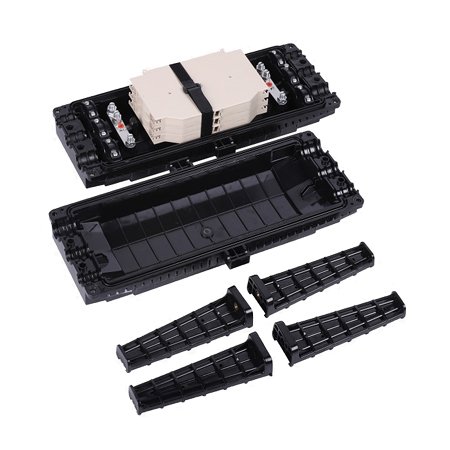

| Splice Tray | 4pcs of 24 Single Fusion Splice Tray |
| Inner Carton | 500*220*125 mm (1pc per Carton) |
| Outer Carton | 640*455*515 mm (10pcs per Carton) |
| Part No. | Description |
| NSFPCH096 | Horizontal Fiber Splice Closure, 96 Fiber Capacity, 3 In 3 Out |
