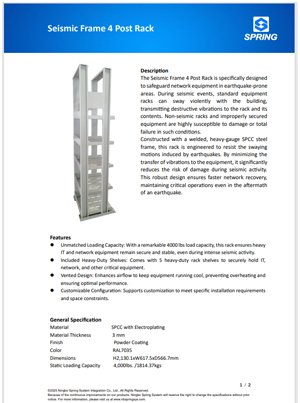

Seismic Frame 4 Post Rack
The Seismic Frame 4 Post Rack is specifically designed to safeguard network equipment in earthquake-prone areas. During seismic events, standard equipment racks can sway violently with the building, transmitting destructive vibrations to the rack and its contents. Non-seismic racks and improperly secured equipment are highly susceptible to damage or total failure in such conditions.
Constructed with a welded, heavy-gauge SPCC steel frame, this rack is engineered to resist the swaying motions induced by earthquakes. By minimizing the transfer of vibrations to the equipment, it significantly reduces the risk of damage during seismic activity. This robust design ensures faster network recovery, maintaining critical operations even in the aftermath of an earthquake.
- Unmatched Loading Capacity: With a remarkable 4000 lbs load capacity, this rack ensures heavy IT and network equipment remain secure and stable, even during intense seismic activity.
- Included Heavy-Duty Shelves: Comes with 5 heavy-duty rack shelves to securely hold IT, network, and other critical equipment.
- Vented Design: Enhances airflow to keep equipment running cool, preventing overheating and ensuring optimal performance.
- Customizable Configuration: Supports customization to meet specific installation requirements and space constraints.
- Technical Data
- Ordering Information
- Resource
| Material | SPCC with Electroplating |
| Material Thickness | 3 mm |
| Finish | Powder Coating |
| Color | RAL7035 |
| Dimensions | H2,130.1xW617.5xD566.7mm |
| Static Loading Capacity | 4,000lbs. /1814.37kgs |
| Part No. | Description |
| NBSES4P | Seismic Frame 4 Post Rack |
