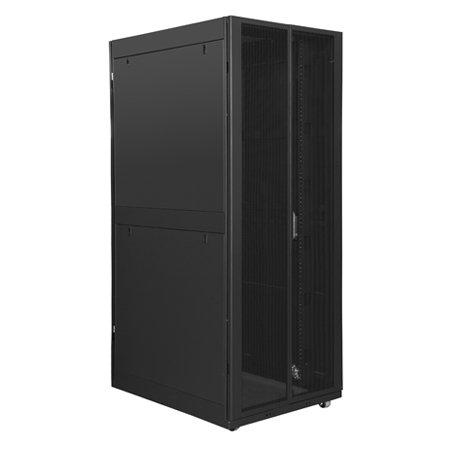

SP Network and Server Enclosures

SP Network and Server Rack Enclosures are crafted using a high quality SPCC, ensuring exceptional structural strength. With a static loading capacity of 2650lbs., these enclosures provide robust support for your equipment.

Choosing arc vented front door and split vented rear door, the enclosure can offer superior heat dissipation, with a heat dissipation area of over 70%. The quick-open side panels enhance installation and maintenance efficiency, facilitating seamless access to your equipment.

These enclosures are designed for convenience, offering the option to install both casters and leveling feet for easy movement and secure fixation.

  • Multiple cable entry options enhance installation flexibility, accommodating various cable configurations.
  • Can be shipped disassembled, reducing transportation and storage costs for added efficiency.
  • Offers multiple front and rear door styles (optional), providing customization options to suit specific needs.
  • Equipped with both adjustable leveling feet and heavy-duty casters for easy mobility and stability.
  • The 19” racks include square holes for cable management.
  • Technical Data
  • Ordering Information
  • Resource
Material High Quality SPCC
Material Thickness Rails 2.00 mm, Other 1.2-1.5 mm
Finish Power Coating
Color RAL9004
Width 600 mm, 800 mm
Depth 800 mm, 900 mm, 1000 mm, 1100 mm, 1200 mm
Height 42U
Rack Mount 19”
Access Front Door/Rear Door/Side Panels
Locking Mechanism Single Point Locking
Static Loading Capacity 1200 kgs/2650 lbs.
Included Accessories 4xLeveling Feet, 4xCasters, Grounding kits, M6 Screws & Nuts, Keys
NSP X X XX X X
NSP=Ningbo Spring SP Series Enclosures Width Depth Height Front Door Rear Door
6=600 mm

8=800 mm



 8=800 mm

9=900 mm

0=1000 mm

1=1100 mm

2=1200 mm

 42=42U A=Glass Door with Perforated Boarders

B=Standard Glass Door

T=Glass Door with Special Perforated Boarders

F=Glass Door with Four Sides Metal Frame

R=Protruding Mesh Door

H=Arc Mesh Door

P=Solid Metal Door

D=Split Metal Door

Q=Standard Mesh Door

S=Split Mesh Door

W=High Density Mesh Door

M=High Density Arc Mesh Door

Note: refer to Door Options section

SP Network and Server Rack Enclosures

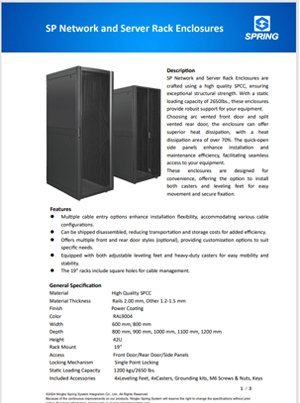

Product Specification
