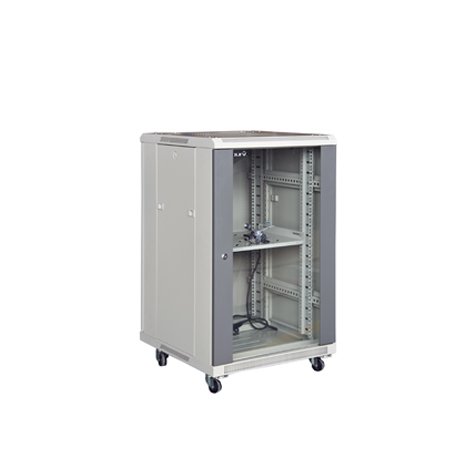

SJ Network Enclosures
SJ network rack enclosures stand out as the preferred choice for floor installations, boasting a robust structure capable of supporting static loads of up to 1700 lbs.
Heavy-duty casters are included to ensure easy and flexible movement. Optional adjustable leveling feet are available to enhance stability and fixation. The quick-open side panels enhance installation and maintenance efficiency, facilitating seamless access to your equipment.
Choose from multiple sizes to accommodate varying equipment space requirements, with the option for customization to meet specific needs.
- Both top and bottom cable entries enhance installation flexibility, accommodating various cable configurations.
- Can be shipped disassembled, reducing transportation and storage costs for added efficiency.
- Offers multiple front and rear door styles (optional), providing customization options to suit specific needs.
- Technical Data
- Ordering Information
- Resource
| Material | High Quality SPCC |
| Material Thickness | Rails 2.00 mm, Other 1-1.2 mm |
| Finish | Power Coating |
| Color | RAL9004/RAL7035 |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 18U, 22U, 27U, 32U, 37U, 42U, 47U |
| Rack Mount | 19” |
| Access | Front Door/Rear Door/Side Panels |
| Locking Mechanism | Single Point Locking |
| Static Loading Capacity | 800 kgs/1700 lbs. |
| Included Accessories | 4xCasters, Grounding kits, M6 Screws & Nuts, Keys |
| Optional Accessories | Fans, Shelves, PDU, Blank Panels |
| NSJ | 6 | 6 | XX | X | X | X |
| NSJ=Ningbo Spring SJ Series Enclosures | Width | Depth | Height | Front Door | Rear Door | Color |
| 6=600 mm | 18=18U
22=22U 27=27U 32=32U 37=37U 42=42U 47=47U |
A=Glass Door with Perforated Boarders
B=Standard Glass Door T=Glass Door with Special Perforated Boarders F=Glass Door with Four Sides Metal Frame R=Protruding Mesh Door H=Arc Mesh Door P=Solid Metal Door D=Split Metal Door Q=Standard Mesh Door S=Split Mesh Door W=High Density Mesh Door M=High Density Arc Mesh Door Note: refer to Door Options section |
None=Black RAL9004
1=Gray RAL7035 |
|||
