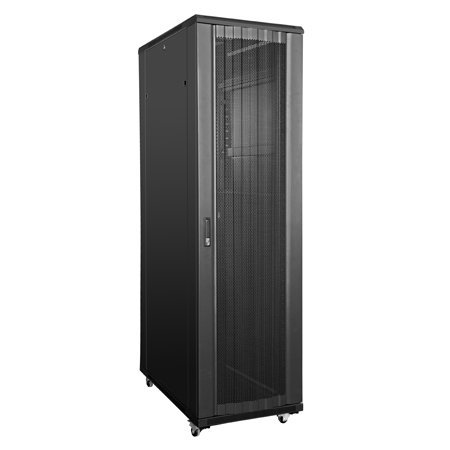

SJ Server Enclosures
Ningbo Spring SJ server rack enclosures offer a customizable solution for data center build-outs, network rooms, or IT closets with the static loading capacity up to 1700 lbs.
Heavy-duty casters are included to ensure easy and flexible movement. Optional adjustable leveling feet are available to enhance stability and fixation. The quick-open side panels enhance installation and maintenance efficiency, facilitating seamless access to your equipment.
Available in dozens of size combinations, and 12 available door options, SJ server rack enclosures offer a variety of options and features to meet your specific needs.
- Both top and bottom cable entries enhance installation flexibility, accommodating various cable configurations.
- Can be shipped disassembled, reducing transportation and storage costs for added efficiency.
- Offers multiple front and rear door styles (optional), providing customization options to suit specific needs.
- Technical Data
- Ordering Information
- Resource
| Material | High Quality SPCC |
| Material Thickness | Rails 2.00 mm, Other 1-1.2 mm |
| Finish | Power Coating |
| Color | RAL9004/RAL7035 |
| Width | 600 mm, 800 mm |
| Depth | 800 mm, 900 mm, 1000 mm |
| Height | 18U, 22U, 27U, 32U, 37U, 42U, 47U |
| Rack Mount | 19” |
| Access | Front Door/Rear Door/Side Panels |
| Locking Mechanism | Single Point Locking |
| Static Loading Capacity | 800 kgs/1700 lbs. |
| Included Accessories | 4xCasters, Grounding kits, M6 Screws & Nuts, Keys |
| Optional Accessories | Fans, Shelves, PDU, Blank Panels |
| NSJ | X | X | XX | X | X | X | |
| NSJ=Ningbo Spring SJ Series Enclosures | Width | Depth | Height | Front Door | Rear Door | Color | |
| 6=600 mm
8=800 mm |
8=800 mm
9=900 mm 0=1000 mm
|
18=18U
22=22U 27=27U 32=32U 37=37U 42=42U 47=47U |
A=Glass Door with Perforated Boarders

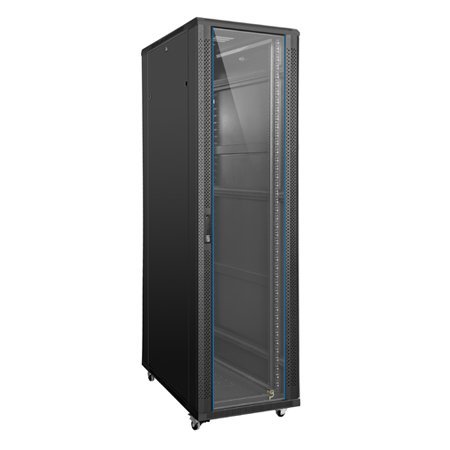

B=Standard Glass Door T=Glass Door with Special Perforated Boarders F=Glass Door with Four Sides Metal Frame R=Protruding Mesh Door H=Arc Mesh Door P=Solid Metal Door D=Split Metal Door Q=Standard Mesh Door S=Split Mesh Door W=High Density Mesh Door M=High Density Arc Mesh Door Note: refer to Door Options section |
None=Black RAL9004
1=Gray RAL7035 |
|||
