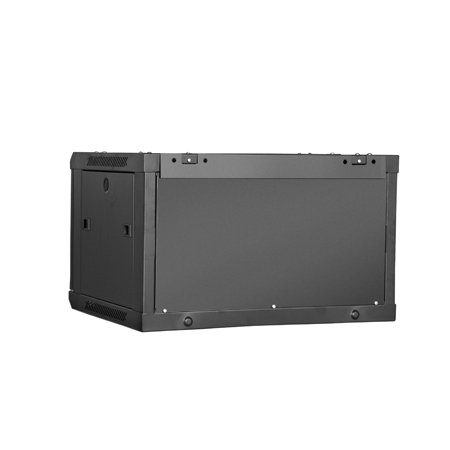

SQE Wall Mount Cabinets
Ningbo Spring SQE Wall Mount Cabinets are engineered to prioritize security and accessibility while optimizing floor space utilization.
Featuring a removable and reversible front door, as well as removable side panels, accessing your equipment is hassle-free.

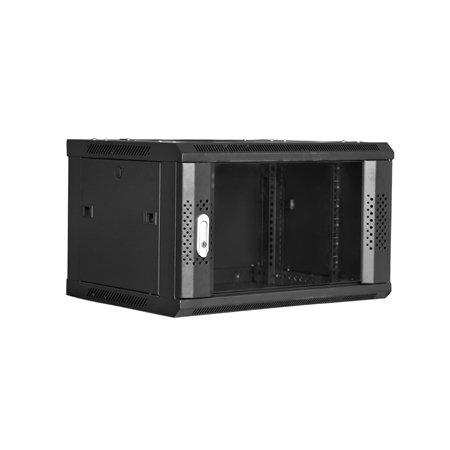

Tempered glass front door presents a polished appearance and complete with a secure lock mechanism (keys included).
With depths ranging from 450 mm to 600 mm, SQE cabinets cater to a variety of applications, from LAN cabling and hardware to securely housing audio and visual equipment.
- Choose from multiple size options to accommodate diverse space requirements.
- Depths of 450 mm, 500 mm, and 600 mm cater to various server and switch depths, allowing ample room for effective cable management.
- Can be shipped disassembled, reducing transportation and storage costs for added efficiency
- Technical Data
- Ordering Information
- Resource
| Material | High Quality SPCC |
| Material Thickness | Rails 1.5.00 mm, Other 1-1.2 mm |
| Finish | Power Coating |
| Color | RAL9004/RAL7035 |
| Width | 550 mm, 600 mm |
| Depth | 450 mm, 500 mm, 600 mm |
| Height | 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U |
| Rack Mount | 19” |
| Access | Front Door/Side Panels |
| Cable Access | Top and Botton |
| Locking Mechanism | Single Point Locking |
| Static Loading Capacity | 60 kgs/132 lbs. |
| NSQE | 6 | X | XX | X |
| NSQE=Ningbo Spring SQE Wall Mount Cabinets | Width | Depth | Height | Color |
| 6=600 mm | 4=450 mm
5=500 mm 6=600 mm |
04=4U (274 mm)
06=6U (363 mm) 09=9U (496 mm) 12=12U (629 mm) 15=15U (762 mm) 18=18U (895 mm) 22=22U (1073 mm) 27=27U (1295 mm) |
None=Black RAL9004
1=Gray RAL7035 |
