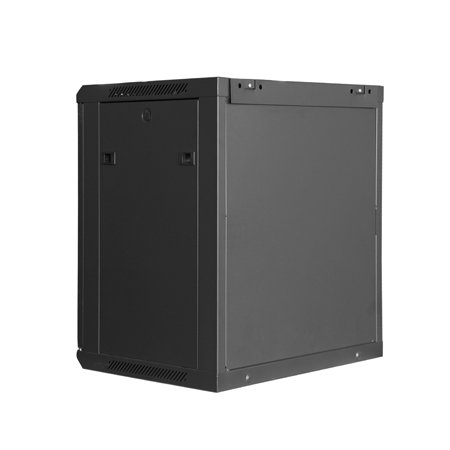

SQA Wall Mount Cabinets
Ningbo Spring SQA Wall Mount Cabinets provide reliability, value, and versatility for organizing and securing your 19″ standard rack-mount servers and networking equipment. Featuring a welded structure and arriving fully assembled, they offer convenient deployment. The cabinet includes one fan, to provide temperature-controlled accommodation for your network and voice equipment.
The SQA Series can be easily mounted on the wall or set up freestanding in space-limited areas, maximizing floor space utilization.
- Choose from multiple size options to accommodate diverse space requirements.
- Depths of 450 mm, 500 mm, and 600 mm cater to various server and switch depths, allowing ample room for effective cable management.
- These cabinets come pre-assembled, ensuring trouble-free installation on walls.
- Technical Data
- Ordering Information
- Resource
| Material | High Quality SPCC |
| Material Thickness | Rails 1.5.00 mm, Other 1-1.2 mm |
| Finish | Power Coating |
| Color | RAL9004/RAL7035 |
| Width | 550 mm, 600 mm |
| Depth | 450 mm, 500 mm, 600 mm |
| Height | 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U |
| Rack Mount | 19” |
| Access | Front Door/Side Panels |
| Cable Access | Top and Botton |
| Locking Mechanism | Single Point Locking |
| Static Loading Capacity | 60 kgs/132 lbs. |
| Included Accessories | 120 mm Fan |
| NSQA | X | X | XX | X | X |
| NSQA=Ningbo Spring SQA Wall Mount Cabinets | Width | Depth | Height | Front Door | Color |
| 5=550 mm 6=600 mm | 4=450 mm 5=500 mm 6=600 mm | 04=4U (274 mm)
06=6U (363 mm) 09=9U (496 mm) 12=12U (629 mm) 15=15U (762 mm) 18=18U (895 mm) 22=22U (1073 mm) 27=27U (1295 mm) |
A=Glass Door with Perforated Boarders
B=Standard Glass Door T=Glass Door with Special Perforated Boarders F=Glass Door with Four Sides Metal Frame P=Solid Metal Door Q=Standard Mesh Door |
None=Black RAL9004
1=Gray RAL7035 |
