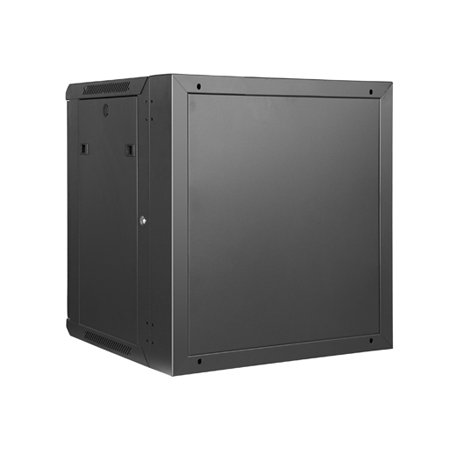

SQS Wall Mount Cabinets

Ningbo Spring SQS Swing Out Wall Mount Cabinets provide a secure, easy-to-install, swing-out storage solution for information and communications technology (ICT) equipment.

Featuring a welded structure and arriving fully assembled, they offer convenient deployment. The cabinet includes one fan, to provide temperature-controlled accommodation for your network and voice equipment.

The SQS Series can be easily mounted on the wall or set up freestanding in space-limited areas, maximizing floor space utilization.

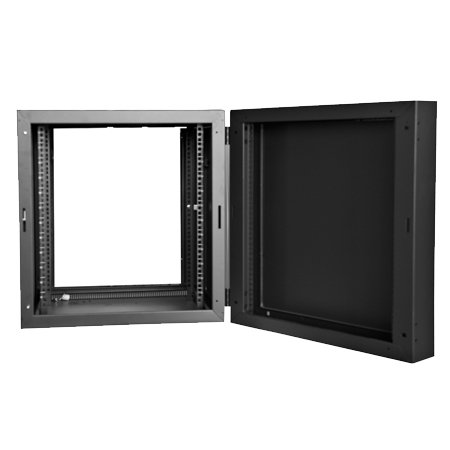

  • Swing-out design allows access and service to the rear of equipment.
  • A single lock and key on the front door provide access to the entire cabinet.
  • These cabinets come pre-assembled, ensuring trouble-free installation on walls.
  • Choose from multiple size options to accommodate diverse space requirements.
  • Technical Data
  • Ordering Information
  • Resource
Material High Quality SPCC
Material Thickness Rails 1.5 mm, Other 1-1.2 mm
Finish Power Coating
Color RAL9004/RAL7035
Width 600 mm
Depth 450 mm+100 mm
Height 4U, 6U, 9U, 12U, 15U, 18U
Rack Mount 19”
Access Front Door/Rear Door/Side Panels
Cable Access Top and Botton
Locking Mechanism Single Point Locking
Static Loading Capacity 60 kgs/132 lbs.
Included Accessories 120 mm Fan
NSQS 6 5 XX X
NSQS=Ningbo Spring SQS Wall Mount Cabinets Width Depth Height Color
6=600 mm 5=500 mm+100 mm 04=4U (274 mm)

06=6U (363 mm)

09=9U (496 mm)

12=12U (629 mm)

15=15U (762 mm)

18=18U (895 mm)

 None=Black RAL9004

1=Gray RAL7035

SQS Swing Out Wall Mount Cabinets

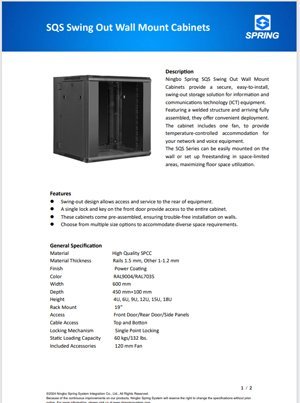

Product Specification
