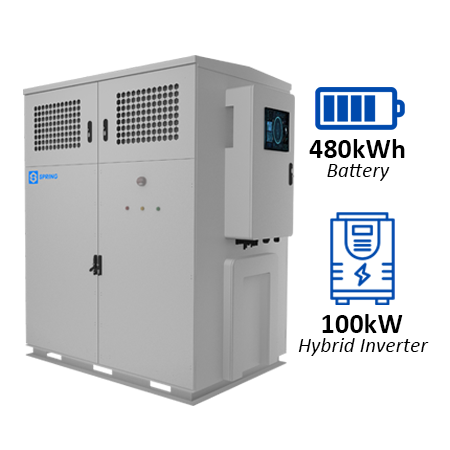

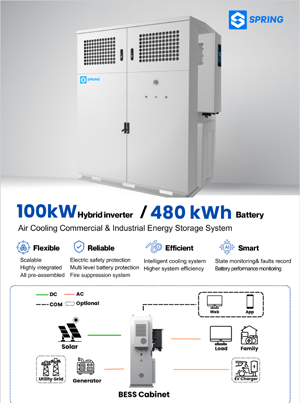

100kW 480kWh BESS for C&I, Air Cooling
The 100kW/480kWh Air-Cooled Commercial & Industrial Energy Storage System is a high-power, ultra-high-capacity energy storage solution engineered for large-scale industrial operations, commercial facilities, and renewable integration projects requiring exceptional energy reserves and robust power performance. This system integrates a powerful 100kW hybrid inverter with a substantial 480kWh LFP battery in a rugged, IP55-rated outdoor cabinet, delivering both rapid power response and extended energy autonomy. Designed for demanding applications, it enables advanced energy management strategies including peak shaving, demand charge reduction, backup power support, and seamless renewable energy utilization.
Built to operate reliably in diverse environmental conditions, the system features an intelligent air-cooling solution, comprehensive safety protections, and compliance with major international standards. With its modular and scalable design, the system offers enterprises a future-ready pathway to energy resilience, operational cost optimization, and sustainable energy transition.
Product Part Number: PBT480HP100
Key Applications
-
Large Industrial Manufacturing Plants: Provides sustained backup power for continuous production processes and significantly reduces peak demand charges during high-energy consumption cycles.
-
Commercial and Office Complexes: Manages high base-load energy consumption for multi-tenant buildings, shopping malls, and corporate campuses while ensuring uninterrupted operation of critical systems.
-
Data Centers and Telecommunication Hubs: Delivers reliable, long-duration backup power to maintain uninterrupted service for critical IT infrastructure and communication networks.
-
Renewable Energy Integration and Microgrids: Stores surplus energy from large-scale solar or wind installations for use during peak demand periods or grid outages, enhancing energy self-sufficiency and grid stability.
-
Electric Vehicle Charging Hubs and Fleet Operations: Supports high-power charging demands for commercial EV fleets, buses, or public charging stations without requiring costly grid infrastructure upgrades.
-
Agricultural and Food Processing Facilities:Powers energy-intensive processing equipment, cold storage, and irrigation systems in remote or off-grid locations with limited grid access.
- Technical Data
- Ordering Information
- Resources
| PBT480B-HP100 | |
| DC Side Parameters | |
| Full Configuration Capacity (kWh) | 480 |
| Cell Parameters | LFP-3.2 V / 314 Ah |
| Module Parameters | LFP-1P48S*10 / 48.23 kWh |
| Rated Voltage (V) | 768 V |
| Maximum DC Current (A) | 150 A |
| DC Voltage Range (V) | 672~864 V |
| Charge/Discharge Rate | 70%EOL @ 25°C / 0.5C |
| Cycle Life (Cycles) | 7,000 ≥ 80% DOD |
| AC Side Parameters | |
| Grid | Grid optional |
| Rated Power | 100 kW |
| Rated Output Voltage | 400 VAC,3L+N+PE |
| Rated Output Current | 318 A |
| Frequency | 50 Hz / 60 Hz |
| Total Harmonic Distortion (THD) of Voltage | < 3% (at rated power) |
| Continuous Overload | 1.2 Pn for 1 minute |
| Power Factor Range | -1 ~ +1 |
| Permissible Grid Voltage | |
| Standard Parameters | |
| Communication Interface | RS-485 / CAN |
| Temperature Control Solution | Air Cooling |
| Fire Protection Solution | Aerosol Fire Protection System |
| Altitude (m) | 3000m (>2000m Derating) |
| Operation temperature range (℃) | Charge Temperature: 0°C~60°C Discharge Temperature: -20~60°C |
| Permissible Relative Humidity (%Rh) | 0~95% Non-condensing |
| Protection Rating | IP55 |
| Anti-corrosion degree | C4 |
| Dimensions (WHD) (mm) | 1700 x 1517 x 2397 |
| Full Configuration Weight | 4200 kg |
| Product Certification | IEC62619, CE-EMC, LVD, ROHS,UN38.3 |
| Part No. | Description |
| PBT480HP100 | 100kW 480kWh Air Cooling BESS for Commercial and Industrial |
