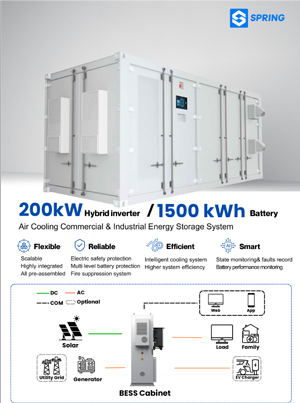

200kW 1500kWh BESS for C&I, Air Cooling
The 200kW/1500kWh Energy Storage Container is a utility-scale, fully integrated battery energy storage system (BESS) engineered for industrial, commercial, and grid-support applications demanding high power, long-duration storage, and operational reliability. Combining a powerful 200kW hybrid inverter with a substantial 1500kWh LFP battery system within a standardized industrial container, this solution provides robust energy management, grid stability services, and seamless renewable integration in a compact, pre-assembled format.
Designed for outdoor deployment in diverse climates, the system features advanced air-cooled thermal management, multi-layer safety protection including integrated aerosol fire suppression, and compliance with key international standards. With its modular and expandable architecture, the containerized BESS offers a scalable and cost-effective pathway for organizations seeking to enhance energy resilience, reduce electricity costs, and support sustainable energy transition at scale.
Product Part Number: PBT1500HP200
Key Applications
-
Industrial Manufacturing and Heavy Industries: Provides large-scale peak shaving and backup power for continuous production processes, reducing demand charges and ensuring operational continuity during grid outages.
-
Utility and Grid Support Services: Delivers frequency regulation, voltage support, and load balancing services to enhance grid stability and support renewable energy integration.
-
Commercial and Large-Scale Retail Complexes: Manages substantial energy consumption for shopping malls, office parks, and entertainment venues, optimizing electricity costs and ensuring reliable power supply.
-
Renewable Energy Farms and Microgrids: Stores surplus energy from solar or wind farms for dispatch during peak periods or low-generation intervals, maximizing renewable self-consumption and grid independence.
-
Data Centers and Critical Infrastructure: Offers extended backup power and load management for data centers, telecommunications hubs, and other mission-critical facilities requiring high availability.
-
Electric Vehicle Charging Megahubs and Fleet Depots: Supports high-power charging for electric buses, trucks, and logistics fleets, mitigating grid impact and enabling scalable EV infrastructure.
-
Remote and Off-Grid Power Supply: Provides reliable, large-capacity energy storage for mining sites, island grids, and remote communities with limited or no grid access.
- Technical Data
- Ordering Information
- Resources
| PBT1500-HP200 | |
| DC Side Parameters | |
| Full Configuration Capacity (kWh) | 1736 |
| Cell Parameters | LFP-3.2V / 314 Ah |
| Module Parameters | LFP-1P48S*36 / 48.23 kWh |
| Rated Voltage (V) | 921.6 V |
| Maximum DC Current (A) | 150 A |
| DC Voltage Range (V) | 672~864 |
| Charge/Discharge Rate | 70%EOL @ 25°C / 0.5C |
| Cycle Life (Cycles) | 7,000 ≥ 80% DOD |
| AC Side Parameters | |
| Rated Power | 500 kW |
| Rated Output Voltage | 400 VAC,3L+N+PE |
| Rated Output Current | 318 A |
| Frequency | 50 Hz / 60 Hz |
| Total Harmonic Distortion (THD) of Voltage | < 3% (at rated power) |
| Continuous Overload | 1.2 Pn for 1 minute |
| Power Factor Range | -1 ~ +1 |
| Permissible Grid Voltage | |
| Standard Parameters | |
| Communication Interface | RS-485 / CAN |
| Temperature Control Solution | Air Cooling |
| Fire Protection Solution | Aerosol Fire Protection System |
| Altitude (m) | 3000m (>2000m Derating) |
| Operation temperature range (℃) | Charge Temperature: 0°C~60°C Discharge Temperature: -20~60°C |
| Permissible Relative Humidity (%Rh) | 0~95% Non-condensing |
| Protection Rating | IP55 |
| Anti-corrosion degree | C4 |
| Dimensions (WHD) (mm) | 6058 x 2438 x 2896 |
| Full Configuration Weight | 18T |
| Product Certification | IEC62619, CE-EMC, LVD, ROHS,UN38.3 |
| Part No. | Description |
| PBT1500HP200 | 200kW 1500kWh Air Cooling BESS for Commercial and Industrial |
