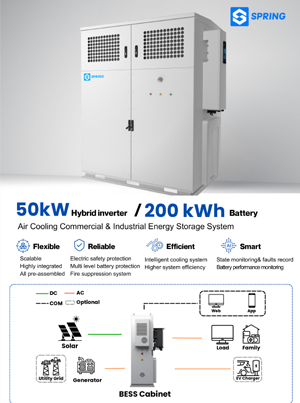

50kW 200kWh BESS for C&I, Air Cooling
The 50kW/200kWh Air-Cooled Commercial & Industrial Energy Storage System is a high‑capacity, long‑duration energy storage solution engineered for businesses that require extended runtime, operational resilience, and substantial electricity cost savings. Integrating a robust 50kW hybrid inverter with a 200kWh LFP battery in a single, rugged outdoor cabinet, this system provides both high power output and exceptional energy reserves — making it ideal for peak shaving, load shifting, backup power, and renewable energy integration in demanding environments.
Designed for reliability and scalability, the system features a modular architecture, intelligent air‑cooled thermal management, multi‑layer safety protection, and compliance with international standards. It enables seamless operation in grid‑tied, off‑grid, and hybrid modes, offering enterprises a future‑ready pathway to energy independence and sustainability.
Product Part Number: PBT200HP50
Key Applications
-
Industrial Manufacturing & Warehousing: Provides extended backup power for production lines and cold storage, and reduces peak demand charges during high-load operations.
-
Large Commercial Complexes & Shopping Malls: Manages substantial base-load energy consumption and ensures uninterrupted power for lighting, HVAC, elevators, and security systems.
-
Agricultural Processing & Irrigation: Supports energy-intensive processing equipment and large-scale irrigation systems in areas with limited or expensive grid supply.
-
Renewable Microgrids & Solar Farms: Stores surplus solar or wind energy for use during evenings or low-generation periods, maximizing self-consumption and grid stability.
-
Data Centers & Telecom Infrastructure: Delivers reliable, long-duration backup power to maintain critical IT and communication services during grid outages.
-
EV Fleet Charging & Logistics Hubs: Buffers high-power charging demands for electric trucks, buses, or logistics vehicles without overloading the local grid infrastructure.
- Technical Data
- Ordering Information
- Resources
| PBT200-HP50 | |
| DC Side Parameters | |
| Full Configuration Capacity (kWh) | 200 |
| Cell Parameters | LFP-3.2 V / 280 Ah |
| Module Parameters | LFP 1P32S -51.2 V / 14.34 kWh |
| Rated Voltage (V) | 409.6 V |
| Maximum DC Current (A) | 150 A |
| DC Voltage Range (V) | 150~840 V |
| Charge/Discharge Rate | 70%EOL @ 25°C / 0.5C |
| Cycle Life (Cycles) | 7,000 ≥ 80% DOD |
| AC Side Parameters | |
| Grid | Grid optional |
| Rated Power | 50 kW |
| Rated Output Voltage | 400 VAC,3L+N+PE |
| Rated Output Current | 75 A |
| Frequency | 50 Hz / 60 Hz |
| Total Harmonic Distortion (THD) of Voltage | < 3% (at rated power) |
| Continuous Overload | 1.2 Pn for 1 minute |
| Power Factor Range | -1 ~ +1 |
| Permissible Grid Voltage | – |
| Standard Parameters | |
| Communication Interface | RS-485 / CAN |
| Temperature Control Solution | Air Cooling |
| Fire Protection Solution | Aerosol Fire Protection System |
| Altitude (m) | 3000m (>2000m Derating) |
| Operation temperature range (℃) | Charge Temperature: 0°C~60°C Discharge Temperature: -20~60°C |
| Permissible Relative Humidity (%Rh) | 0~95% Non-condensing |
| Protection Rating | IP55 |
| Anti-corrosion degree | C4 |
| Dimensions (WHD) (mm) | 1300 x 2386 x 1442 |
| Full Configuration Weight | 2250 kg |
| Product Certification | IEC62619, CE-EMC, LVD, ROHS,UN38.3 |
| Part No. | Description |
| PBT200HP50 | 50kW 200kWh Air Cooling BESS for Commercial and Industrial |
