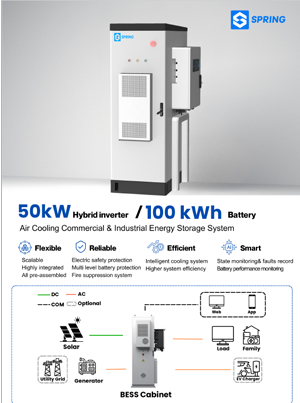

50kW 100kWh BESS for C&I, Air Cooling
The 50kW/100kWh Air-Cooled Commercial & Industrial Energy Storage System is a high-performance, fully integrated battery energy storage solution designed for businesses and facilities requiring robust power capacity, operational reliability, and intelligent energy management. Combining a 50kW hybrid inverter with a 100kWh LFP battery in a single, pre-assembled outdoor cabinet, this system delivers seamless grid-tied and off-grid operation, scalable performance, and advanced safety features—all built to international standards for global deployment.
Built for demanding environments, the system features a multi-layer protection architecture, efficient air cooling, real-time monitoring, and remote management capabilities, making it an ideal choice for industrial plants, commercial complexes, agricultural operations, and renewable integration projects.
Product Part Number: PBT100HP50
Key Applications
-
Industrial Manufacturing: Optimize energy use for production lines and provide backup power during outages to maintain operational continuity.
- Commercial Buildings: Reduce peak demand charges and ensure stable power supply for lighting, HVAC, and critical systems in offices and retail spaces.
- Agricultural Operations: Support irrigation, cold storage, and processing equipment in remote or off-grid farming locations with reliable energy storage.
-
Renewable Energy Integration: Maximize self-consumption of solar or wind power and stabilize microgrids by storing surplus renewable energy.
-
Hospitality & Healthcare: Deliver uninterrupted power for hotels, hospitals, and clinics to safeguard guest comfort and patient safety.
-
EV Charging & Fleet Depots: Enable high-power electric vehicle charging without grid overload, supporting sustainable transportation infrastructure.
- Technical Data
- Ordering Information
- Resources
| PBT100-HP50 | |
| DC Side Parameters | |
| Full Configuration Capacity (kWh) | 100 |
| Cell Parameters | LFP-3.2 V / 280 Ah |
| Module Parameters | LFP 1P16S -51.2 V / 14.34 kWh |
| Rated Voltage (V) | 409.6 V |
| Maximum DC Current (A) | 150 A |
| DC Voltage Range (V) | 150~840 V |
| Charge/Discharge Rate | 70%EOL @ 25°C / 0.5C |
| Cycle Life (Cycles) | 7,000 ≥ 80% DOD |
| AC Side Parameters | |
| Grid | Grid optional |
| Rated Power | 50 kW |
| Rated Output Voltage | 400 VAC,3L+N+PE |
| Rated Output Current | 75 A |
| Frequency | 50 Hz / 60 Hz |
| Total Harmonic Distortion (THD) of Voltage | < 3% (at rated power) |
| Continuous Overload | 1.2 Pn for 1 minute |
| Power Factor Range | -1 ~ +1 |
| Permissible Grid Voltage | – |
| Standard Parameters | |
| Communication Interface | RS-485 / CAN |
| Temperature Control Solution | Air Cooling |
| Fire Protection Solution | Aerosol Fire Protection System |
| Altitude (m) | 3000m>2000m Derating) |
| Operation temperature range (℃) | Charge Temperature: 0°C~60°C Discharge Temperature: -20~60°C |
| Permissible Relative Humidity (%Rh) | 0~95% Non-condensing |
| Protection Rating | IP55 |
| Anti-corrosion degree | C4 |
| Dimensions (WHD) (mm) | 1300 x 2386 x 1442 |
| Full Configuration Weight | 2250 kg |
| Product Certification | IEC62619, CE-EMC, LVD, ROHS,UN38.3 |
| Part No. | Description |
| PBT100HP50 | 50kW 100kWh Air Cooling BESS for C&I |
