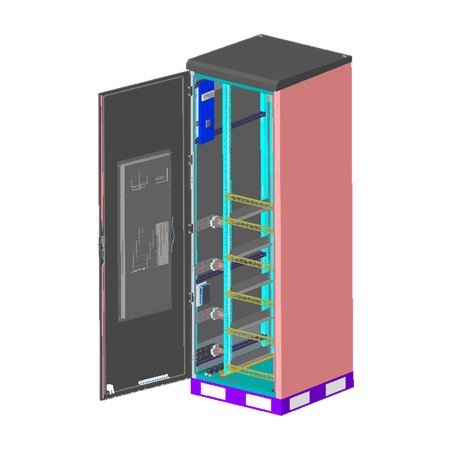

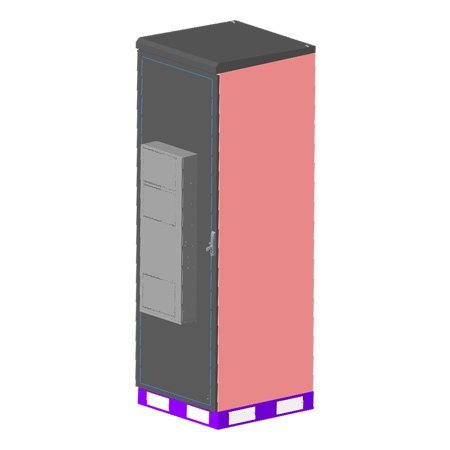

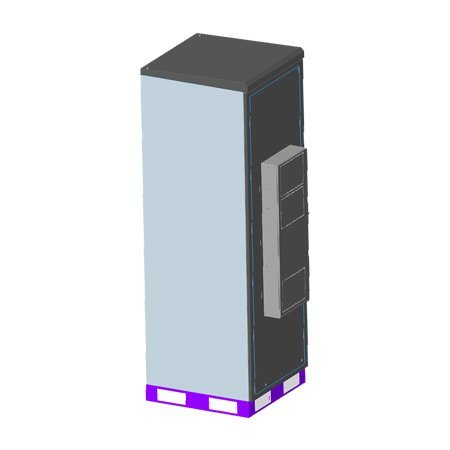

48U Outdoor Enclosure, Galvanized Steel, 2KW Air Conditioner, IP55
This 48U outdoor telecom enclosure is designed to provide robust protection and cooling for sensitive electronic devices. The two-layer structure enhances the cabinet’s ability to shield telecommunications equipment from harsh environmental factors such as rain, dust, extreme temperatures, and potential vandalism. The cooling system, consisting of 1pc of 2kW air conditioner, ensures that the internal temperature is regulated effectively, maintaining optimal operating conditions for the equipment inside. This makes it an ideal solution for housing a wide range of equipment in outdoor settings.
Product Part Number: 05248020001
- Technical Data
- Ordering Information
- Resources
| Material | Two Layers, 1.5 mm Thickness Galvanized Steel, 10 mm Thickness, Thermal Insulation Foam as Inner Layer. |
| Finish | Pantone 428C Powder Coating |
| Color | RAL7035 Light Grey |
| External Dimension | H2437xW800xD800 mm, including Plinth H120 mm |
| Protection Level | IP55 |
| Installation | Pad Mount |
| Access | Front Door |
| Rack Mount | 19” |
| Locking Mechanism | 4 Point Locking |
| Cable Access | 16 pcs of PG29 at the Bottom |
| Optional Accessories | Fan |
| Part No. | Description |
| 05248020001 | 48U Outdoor Enclosure, Galvanized Steel, 2kW Air Conditioner, IP55 |
