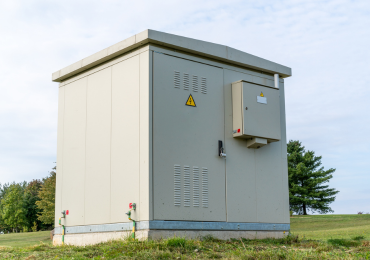

Outdoor cabinets are used to protect sensitive equipment or control systems in outdoor environments. The enclosures should not only be waterproof but also able to withstand external forces such as dust and sunlight exposure. When designing outdoor cabinets, one important consideration is choosing the suitable material construction. At Ningbo Spring, we offer three options for material construction of outdoor cabinets: single-wall, double-wall, and sandwich panel. Each option has its benefits and is suited to different applications, making the choice is crucial for ensuring optimal protection.

Single-Wall Cabinets

Single-wall cabinets are a straightforward and economical solution for protection against environmental elements. Their single layer of material—typically metal like steel, aluminum, or stainless steel—offers a basic shield from rain, wind, and dust. This design makes them lighter and less expensive compared to double-wall or sandwich panel cabinets.

For more details on material choices, you can check out this link:

Choosing Material for Outdoor Electrical Enclosures and Cabinets

Benefits of Single Wall Cabinets

• Cost-Effective: Single-wall cabinets are typically less expensive than double-wall or sandwich panel options, making them a budget-friendly choice for many applications.
• Lightweight: They are generally lighter than double-wall or sandwich panel cabinets, which can simplify installation and handling.
• Simplicity: The straightforward design of single-wall cabinets can make them easier to manufacture and maintain.
• Compact Design: They provide a more compact design, which can be advantageous in space-constrained environments.

For less demanding environments or applications where extreme protection is not required, single-wall cabinets can offer adequate protection against basic environmental factors.

Double-Wall Cabinets

Double-walled cabinets feature an additional layer of insulation or air gap between the inner and outer walls, providing enhanced protection against harsh environmental conditions.

Benefits of Double-wall Cabinets

• Enhanced Insulation: The additional layer of insulation or air gap between the walls improves thermal insulation, helping to maintain stable internal temperatures.
• Better Protection: Provides superior protection against harsh environmental conditions, such as extreme temperatures, UV exposure, and mechanical impacts.
• Improved Durability: The extra layer adds strength and durability, reducing the likelihood of damage from external forces.
• Reduced Condensation: The insulating layer helps to minimize condensation inside the cabinet, protecting sensitive equipment from moisture-related issues.
• Noise Reduction: The double walls can help dampen noise, making them suitable for noise-sensitive environments.
• Increased Efficiency: By maintaining a more stable internal environment, double-wall cabinets can improve the efficiency and longevity of the equipment housed inside.

The additional layer of insulation and protection makes double-wall cabinets a versatile choice for various demanding applications.

Cabinets with Sandwich Panel

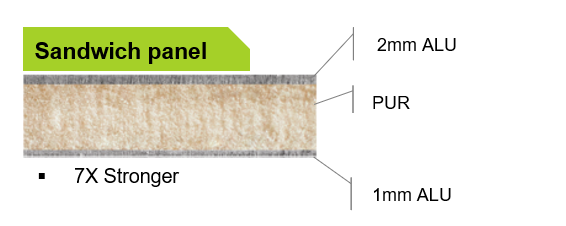

A sandwich panel for outdoor enclosures is a type of construction material consisting of three layers. Two Outer Layers: typically made from durable materials such as metal (e.g., aluminum, steel). These outer layers provide structural strength, weather resistance, and aesthetic appeal.

Sandwiched between the two outer layers, the core material is an insulating layer that can be made from various materials, we usually use thermal insulation foam with the thickness tailored to meet the specific needs of the customer.

Benefits of Sandwich Panel Cabinets

• Superior Insulation: Sandwich panels provide excellent thermal and acoustic insulation due to their core material, which can be foam, mineral wool, or other insulating materials.
• Enhanced Strength: The combination of outer layers and the core material creates a strong and durable structure, offering superior protection against impacts and deformation.
• Energy Efficiency: The insulating properties help maintain a stable internal temperature, potentially reducing the need for additional climate control measures and improving energy efficiency.
• Lightweight Construction: Despite their strength, sandwich panel cabinets are often lighter than equivalent double-wall constructions, which can facilitate easier handling and installation.
• Resistance to Environmental Conditions: They offer good resistance to temperature extremes, moisture, and other environmental factors, making them suitable for a range of challenging conditions.
• Soundproofing: The insulating core helps reduce noise transmission, which is beneficial in noise-sensitive environments.

Sandwich panel cabinets are a versatile option, providing a combination of strength, insulation, and environmental resistance for various demanding applications.

Conclusion

Whether you choose a single-wall, double-wall cabinets or cabinets with sandwich panel, it’s crucial to assess your specific needs carefully. Consider factors such as environmental conditions, equipment sensitivity, budget constraints, and long-term durability when making your decision. Selecting the appropriate cabinet will help ensure the safety and longevity of your valuable assets in any weather condition.
